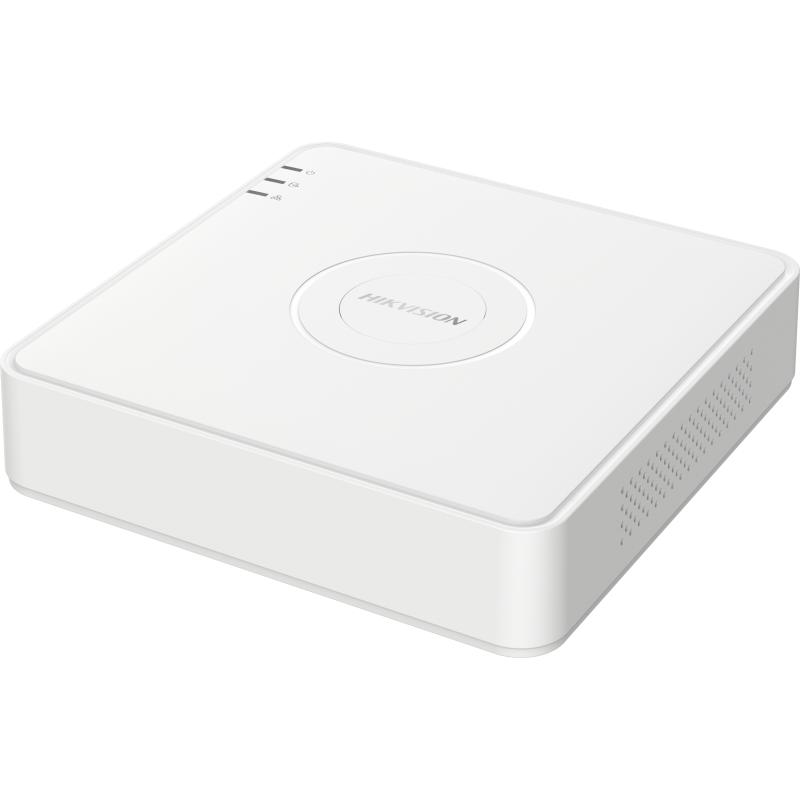

Hikvision iDS-7104HQHI-M1/S 4-ch 1080P Mini 1U H.265 AcuSense DVR

Not rated

In Stock Model: iDS-7104HQHI-M1/S

37.5 JOD

Add to My Favourite Add to compare

Data sheet

Hikvision AcuSense 4-channel DVR supporting up to 4MP Lite recording. Powered by deep learning for advanced human and vehicle classification to reduce false alarms. Features H.265 Pro+ compression and supports audio over coaxial cable for high-quality, efficient surveillance.

QTY

Add to Cart

Quote Request

Total : 37.5 JOD

Description Specifications Customer Reviews

The Hikvision iDS-7104HQHI-M1/S is a high-performance 4-channel digital video recorder that belongs to the AcuSense family. It utilizes deep learning technology to provide precise filtering of false alarms by focusing specifically on human and vehicle movements. This DVR is ideal for users who need high-definition recording (up to 4MP Lite) and smart search capabilities.

Key Features:

AcuSense Technology: Advanced deep learning algorithm for motion detection 2.0 and perimeter protection.
Superior Resolution: Supports 4MP Lite, 3MP, and 1080p recording resolutions.
Hybrid Flexibility: Supports 5 signals (HDTVI/AHD/CVI/CVBS/IP) and up to 6 IP camera inputs (up to 6MP).
Storage Efficiency: H.265 Pro+ technology saves up to 75% of storage and bandwidth.
Integrated Audio: Support for Audio over Coaxial (AoC) allows for synchronized sound recording via the BNC cable.
Smart Search: Quickly find footage based on human or vehicle triggers, saving time during playback.

Specifications

Category	Specification
Brand	Hikvision
Model	iDS-7104HQHI-M1
Device Type	Digital Video Recorder (DVR)
Series	Turbo HD AcuSense
Analog Video Inputs	4 channels (HDTVI/AHD/CVI/CVBS)
IP Camera Support	Up to 6 channels (up to 6 MP)
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	Up to 1080p @ 15 fps
Motion Detection	Motion Detection 2.0 (human/vehicle classification)
Perimeter Protection	Smart perimeter analysis
Facial Detection	Face detection and capture
Audio Input	1 × RCA + audio via coaxial
Audio Output	1 × RCA
Two-Way Audio	Supported via first audio input
Synchronous Playback	Up to 4 channels
Video Bitrate	32 Kbps – 6 Mbps
Dual-stream Support	Yes
Total Bandwidth	72 Mbps
Network Interface	1 × RJ45 10/100 Mbps
HDD Interface	1 × SATA (up to 10 TB)
USB	2 × USB 2.0
Remote Connections	Up to 32
Network Protocols	TCP/IP, DHCP, DDNS, Hik-Connect, etc.
Wi-Fi Support	via USB adapter
Power Supply	12 V DC, 1.5 A
Power Consumption	≤ 8 W (without HDD)
Operating Temp	-10 °C to +55 °C
Operating Humidity	10% – 90%
Dimensions	200 × 200 × 48 mm
Weight	≤ 1 kg
