Cudy 16-Port 10/100M PoE+ & 2-Port Gigabit Switch with 1 SFP Slot

Cudy 16-Port 10/100M PoE+ & 2-Port Gigabit Switch with 1 SFP Slot
Not rated
In Stock Model: FS1018PS1 4.0
85 JOD

  • 16 PoE+ Ports: 16 × 10/100 Mbps PoE+ ports (IEEE 802.3af/at).
  • High Power Budget: Total PoE power output of 200 Watts (up to 30W per port).
  • Gigabit Uplinks: 2 × 10/100/1000 Mbps RJ45 ports + 1 × 1000 Mbps SFP slot.
  • Long Range Extend: Supports PoE transmission up to 250 meters at 10 Mbps.
  • VLAN Port Isolation: Enhances security and prevents broadcast storms.
QTY

Total : 85 JOD

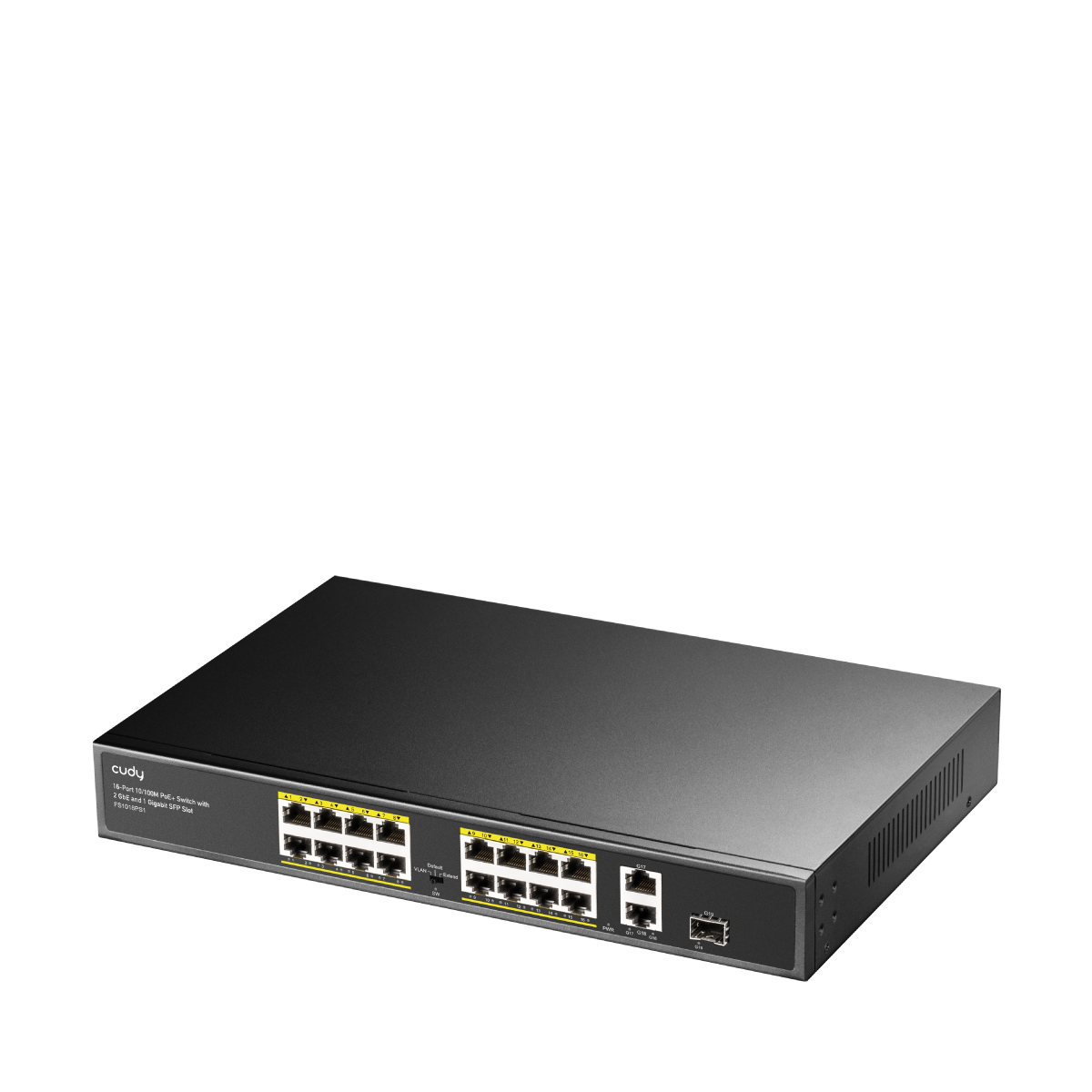

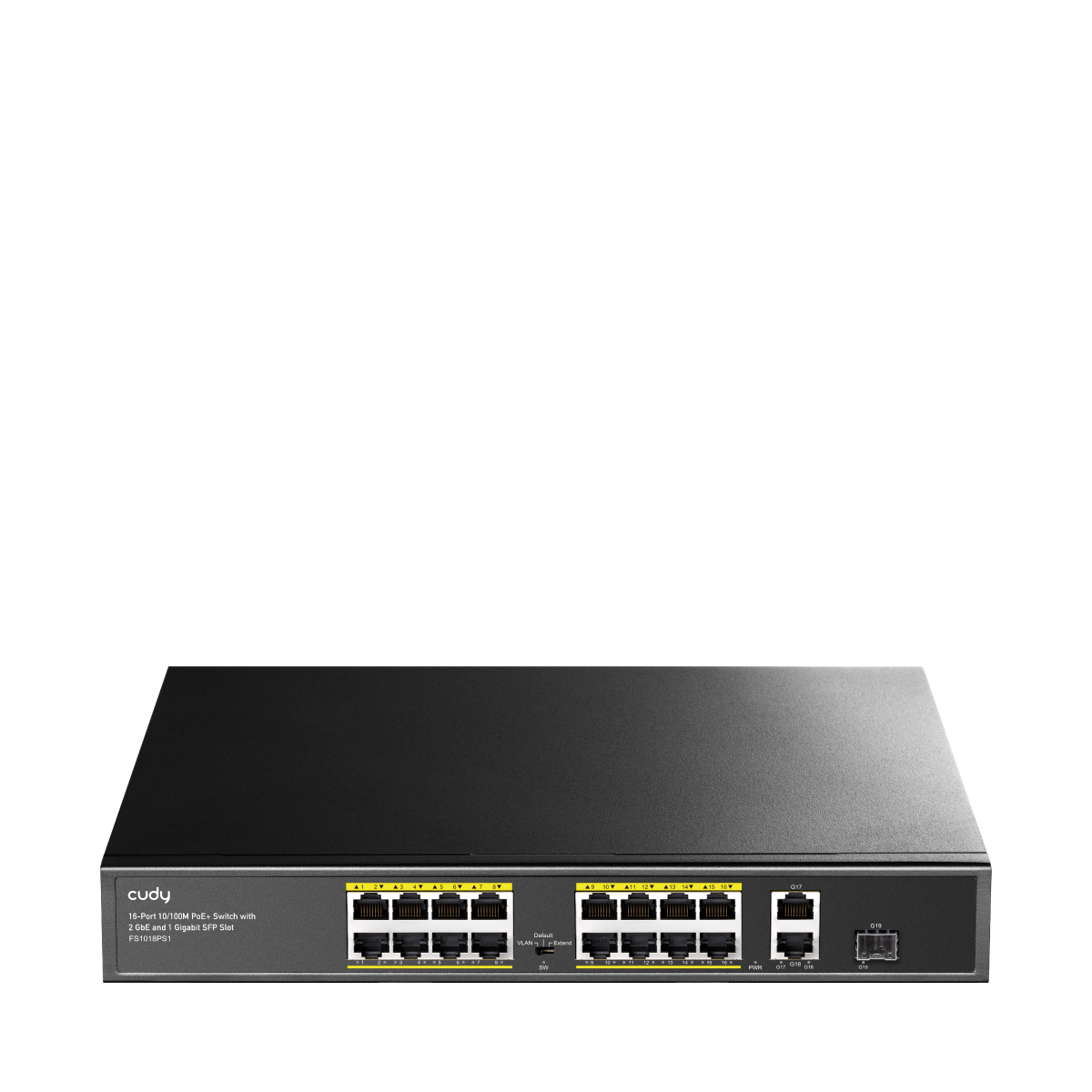

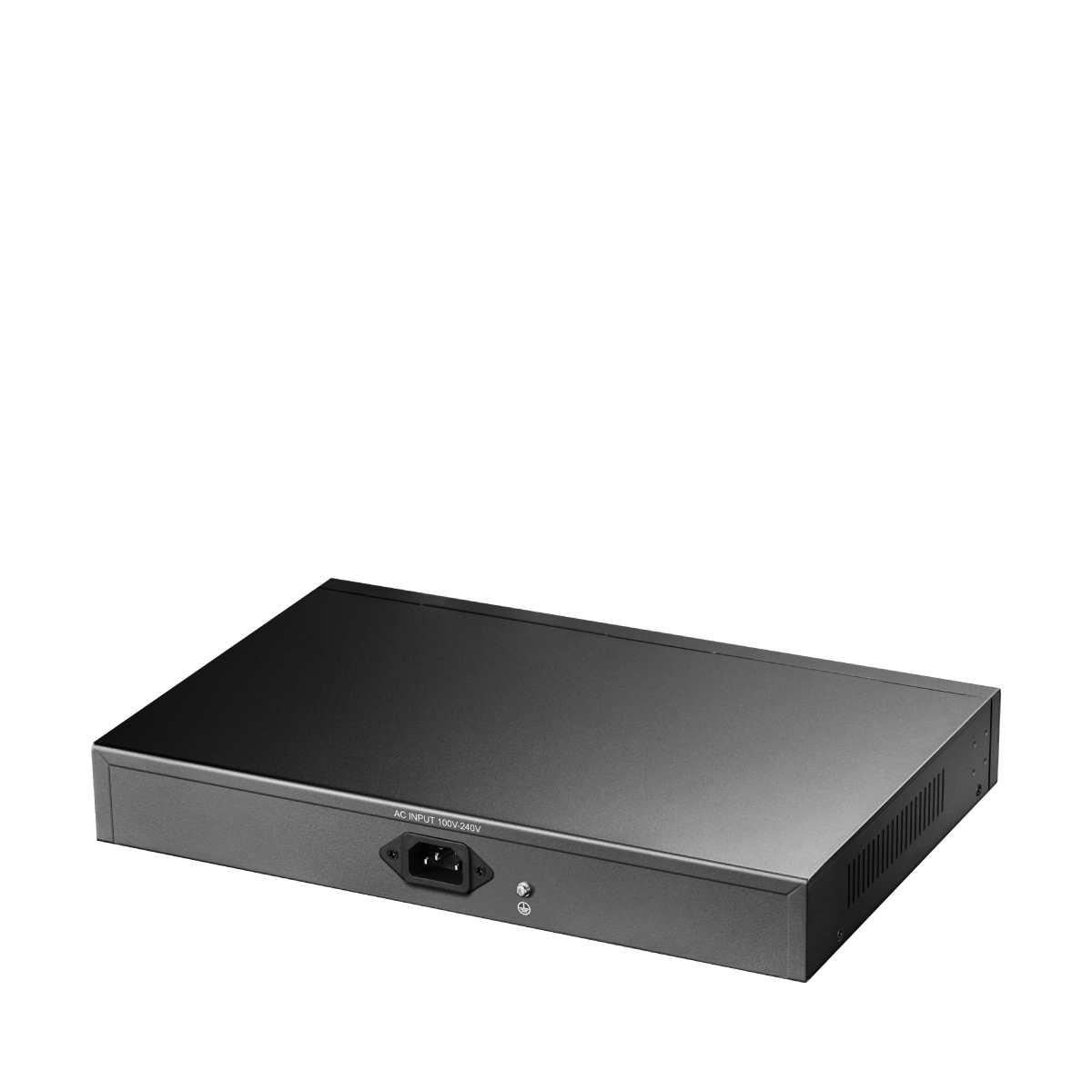

The Cudy FS1018PS1 4.0 is a robust 19-port unmanaged PoE+ switch designed for professional IP surveillance and medium-scale networking. It features 16 specialized PoE+ ports that deliver up to 30W per port, with a massive 200W total power budget, making it capable of powering multiple high-definition IP cameras, access points, and VoIP phones simultaneously. For high-speed data backhaul, the switch provides two Gigabit Ethernet uplink ports and one SFP fiber slot, ensuring a lag-free connection to an NVR or core network. A built-in DIP switch allows users to toggle Extend Mode for 250m long-distance cabling and VLAN Mode for port isolation. Housed in a durable 13-inch steel casing, it supports both desktop and rackmount installation.

Specifications

Hardware Specifications
Product ModelFS1018PS1
Product Version4.0
Network Ports16 × 10/100 Mbps PoE+ Ports / 2 × 10/100/1000 Mbps Uplink Ports / 1 × 1000 Mbps SFP Slot
PoE StandardIEEE 802.3af / IEEE 802.3at
PoE Power Budget200 Watts (Max 30W per port)
Switching Capacity12 Gbps
MAC Address Table4K
Buffer Memory2.75 Mbit
DIP SwitchStandard / Extend (250m) / VLAN (Port Isolation)
Power SupplyInternal Power Supply (100-240V AC, 50/60Hz)
Dimensions330 × 208 × 44 mm (13" Steel Case)
Other Specifications
Transmission MethodStore-and-Forward
Fan Quantity1 × Cooling Fan
CertificationCE, FCC, RoHS
EnvironmentOperating Temp: 0℃~40℃ / Storage Temp: -40℃~70℃
Package Contents1 × FS1018PS1 Switch, 1 × Power Cable, 1 × Rackmount Kit, 1 × Quick Installation Guide
