Cudy 30W Gigabit PoE+ Injector

Cudy 30W Gigabit PoE+ Injector

Not rated

Out Of Stock Model: POE200 1.0

14 JOD

Add to My Favourite Add to compare

Data sheet

Input: GbE In
Output: GbE Out
Distance: 100m Transmission Distance
Power: 802.3at/af, Max 30W, Mode A
Pins: 2-Pair 1/2- 3/6+
LED: Power LED
Protection: Surge/ESD Protection

QTY

Add to Cart

Quote Request

Total : 14 JOD

Notify me when available

Description Specifications Customer Reviews

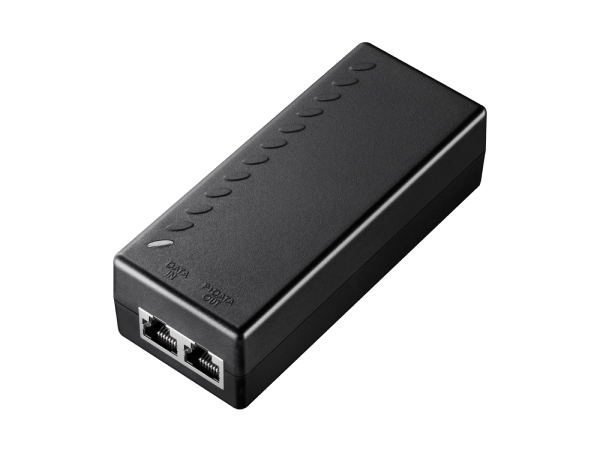

The POE200 is a compact PoE adapter supporting IEEE 802.3at/af standards, delivering up to 30W over Mode A with 2-pair transmission. It features GbE input and output ports, a 100-meter transmission distance, Power LED indicator, and surge/ESD protection. Its small plastic casing makes it ideal for desktop or wall-mount installations.

Specifications

Hardware Specifications
Product Model	POE200
Product Version	1.0

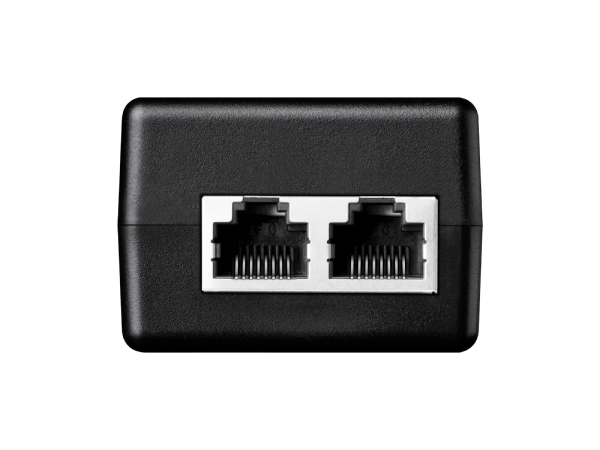

Interface	1 × 10/100/1000 Mbps RJ45 Data In Port / 1 × 10/100/1000 Mbps RJ45 PoE Out Port
PoE Standard	IEEE 802.3af / IEEE 802.3at (PoE+)
PoE Power Budget	Up to 30W
PoE Pin Assignment	1/2(+), 3/6(-)

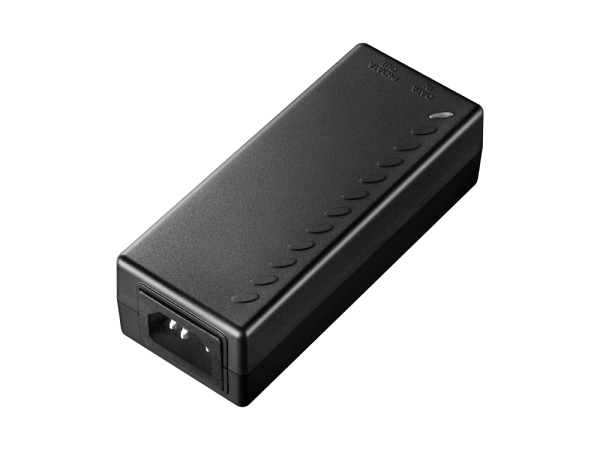

Power Supply	100-240V AC, 50/60Hz
Performance & Environment
Transmission Media	Cat5 or better UTP cable
Protection	Lightning Protection, Short Circuit Protection
Dimensions	145 × 61 × 39 mm
Operating Temp	0℃ to 40℃ (32℉ to 104℉)
Certification	CE, FCC, RoHS
Package Contents	1 × POE200 Injector, 1 × Power Cable, Quick Installation Guide
