Cudy 24-Port Gigabit PoE+ & 2-Port Gigabit Switch with 2 SFP Slots

Cudy 24-Port Gigabit PoE+ & 2-Port Gigabit Switch with 2 SFP Slots
Not rated
Out Of Stock Model: GS1028PS2 1.0
140 JOD

  • Full Gigabit Power: 24 × 10/100/1000 Mbps PoE+ ports and 2 × 10/100/1000 Mbps Uplink ports.
  • Fiber Expansion: 2 × 1000 Mbps SFP slots for high-speed fiber-optic connectivity.
  • Massive PoE Budget: Total power output of 300 Watts (up to 30W per port).
  • Advanced Hardware Control: DIP switch for 250m Extend mode and VLAN port isolation.
  • Rackmount Ready: 19-inch rugged steel casing with active cooling and internal power supply.
QTY

Total : 140 JOD
Notify me when available

The Cudy GS1028PS2 1.0 is a high-capacity 28-port unmanaged Gigabit PoE+ switch designed for enterprise-level IP surveillance and high-density networking. It features 24 Gigabit PoE+ ports compliant with IEEE 802.3af/at standards, providing a substantial 300W total power budget to support multiple high-power devices like PTZ cameras, Wi-Fi 6 access points, and VoIP systems. For seamless data integration into the core network, the switch offers two Gigabit Ethernet uplink ports and two Gigabit SFP slots, providing flexible fiber-optic options for long-distance transmission. The integrated DIP switch allows for instant activation of Extend Mode (reaching up to 250m at 10Mbps) and VLAN Mode (isolating ports 1-24 to enhance security). Its professional 19-inch steel design ensures durability and heat dissipation via built-in fans, making it a reliable backbone for modern business infrastructures.

Specifications

Hardware Specifications
Product ModelGS1028PS2
Product Version1.0
Network Ports24 × 10/100/1000 Mbps PoE+ Ports / 2 × 10/100/1000 Mbps Uplink Ports / 2 × 1000 Mbps SFP Slots
PoE StandardIEEE 802.3af / IEEE 802.3at
PoE Power Budget300 Watts (Max 30W per port)
Switching Capacity56 Gbps
MAC Address Table8K
Buffer Memory4.1 Mbit
DIP SwitchStandard / Extend (250m) / VLAN (Port Isolation)
Power SupplyInternal Power Supply (100-240V AC, 50/60Hz)
Dimensions440 × 208 × 44 mm (19" Steel Case)
Other Specifications
Transmission MethodStore-and-Forward
Fan Quantity2 × Cooling Fans
CertificationCE, FCC, RoHS
EnvironmentOperating Temp: 0℃~40℃ / Storage Temp: -40℃~70℃

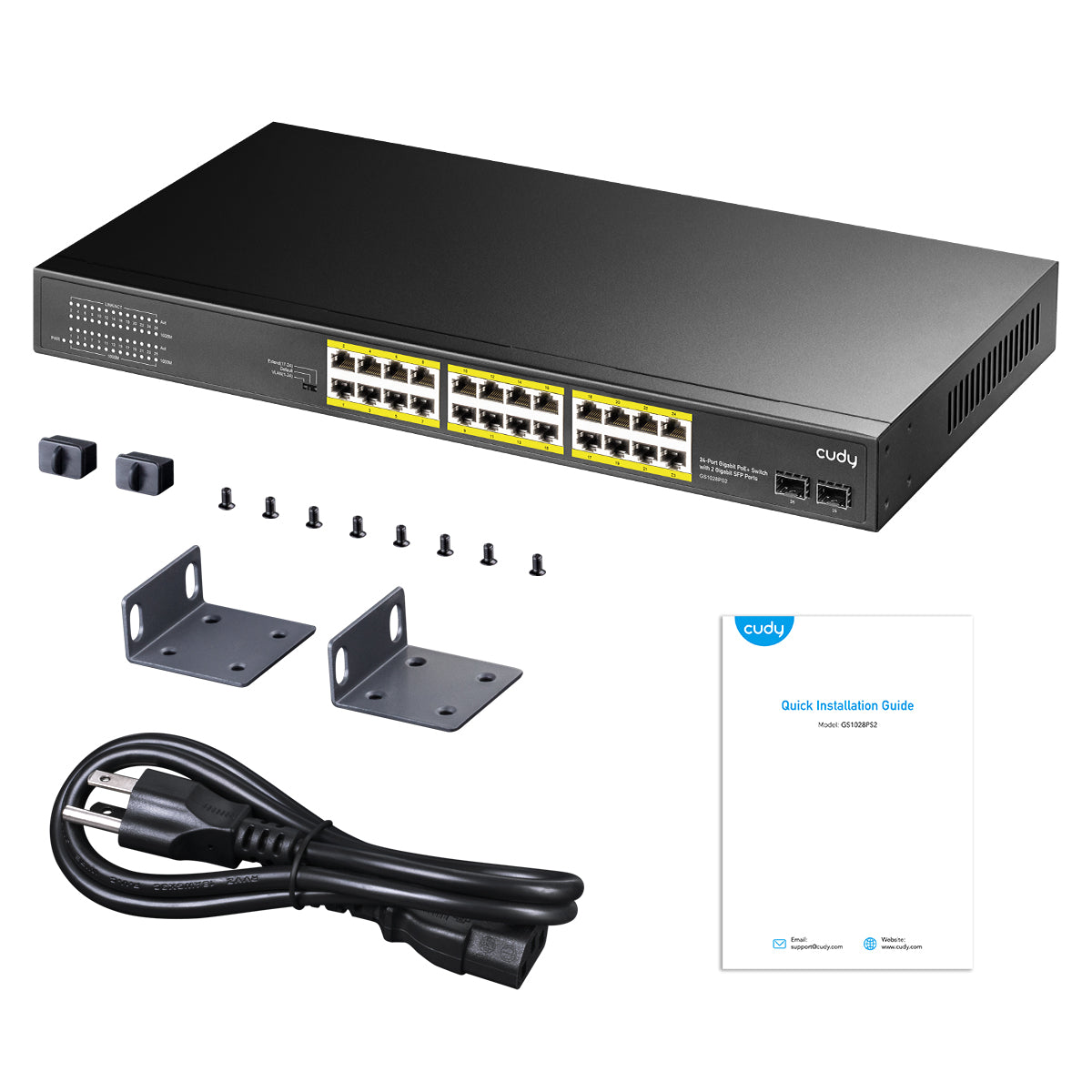

Package Contents1 × GS1028PS2 Switch, 1 × Power Cable, 1 × Rackmount Kit, 1 × Quick Installation Guide
