Cudy 24-Port 10/100M PoE+ & 2-Port Gigabit Switch with 1 SFP Slot

Cudy 24-Port 10/100M PoE+ & 2-Port Gigabit Switch with 1 SFP Slot
Not rated
In Stock Model: FS1026PS1 4.0
120 JOD

  • 24 PoE+ Ports: 24 × 10/100 Mbps PoE+ ports (IEEE 802.3af/at).
  • High PoE Power Budget: Total power output of 300 Watts (up to 30W per port).
  • Triple Uplink Options: 2 × 10/100/1000 Mbps RJ45 ports + 1 × 1000 Mbps SFP slot.
  • Long Range Extend Mode: Supports PoE transmission up to 250 meters at 10 Mbps.
  • VLAN Port Isolation: Hardware-based isolation to enhance security and network stability.
QTY

Total : 120 JOD

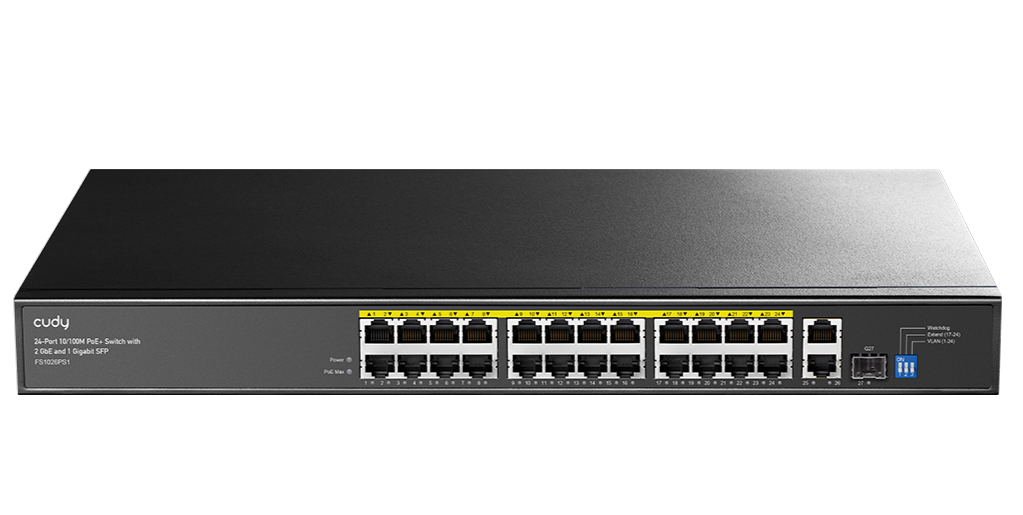

The Cudy FS1026PS1 4.0 is a high-capacity 27-port unmanaged PoE+ switch designed for large-scale IP surveillance and enterprise networking. It features 24 specialized PoE+ ports delivering up to 30W per port, with a massive 300W total power budget, making it capable of powering an extensive array of IP cameras, VoIP phones, and wireless access points. To ensure smooth data backhaul to the core network or NVR, it provides two Gigabit Ethernet uplink ports and one Gigabit SFP fiber slot. The integrated DIP switch allows for easy activation of Extend Mode (up to 250m) and VLAN Mode (port isolation). Housed in a 19-inch rugged steel casing, it is built for professional rackmount installation and features active cooling for long-term reliability.

Specifications

Hardware Specifications
Product ModelFS1026PS1
Product Version4.0
Network Ports24 × 10/100 Mbps PoE+ Ports / 2 × 10/100/1000 Mbps Uplink Ports / 1 × 1000 Mbps SFP Slot
PoE StandardIEEE 802.3af / IEEE 802.3at
PoE Power Budget300 Watts (Max 30W per port)
Switching Capacity14.8 Gbps
MAC Address Table8K
Buffer Memory4 Mbit
DIP SwitchStandard / Extend (250m) / VLAN (Port Isolation)
Power SupplyInternal Power Supply (100-240V AC, 50/60Hz)
Dimensions440 × 208 × 44 mm (19" Steel Case)
Other Specifications
Transmission MethodStore-and-Forward
Fan Quantity2 × Cooling Fans
CertificationCE, FCC, RoHS
EnvironmentOperating Temp: 0℃~40℃ / Storage Temp: -40℃~70℃

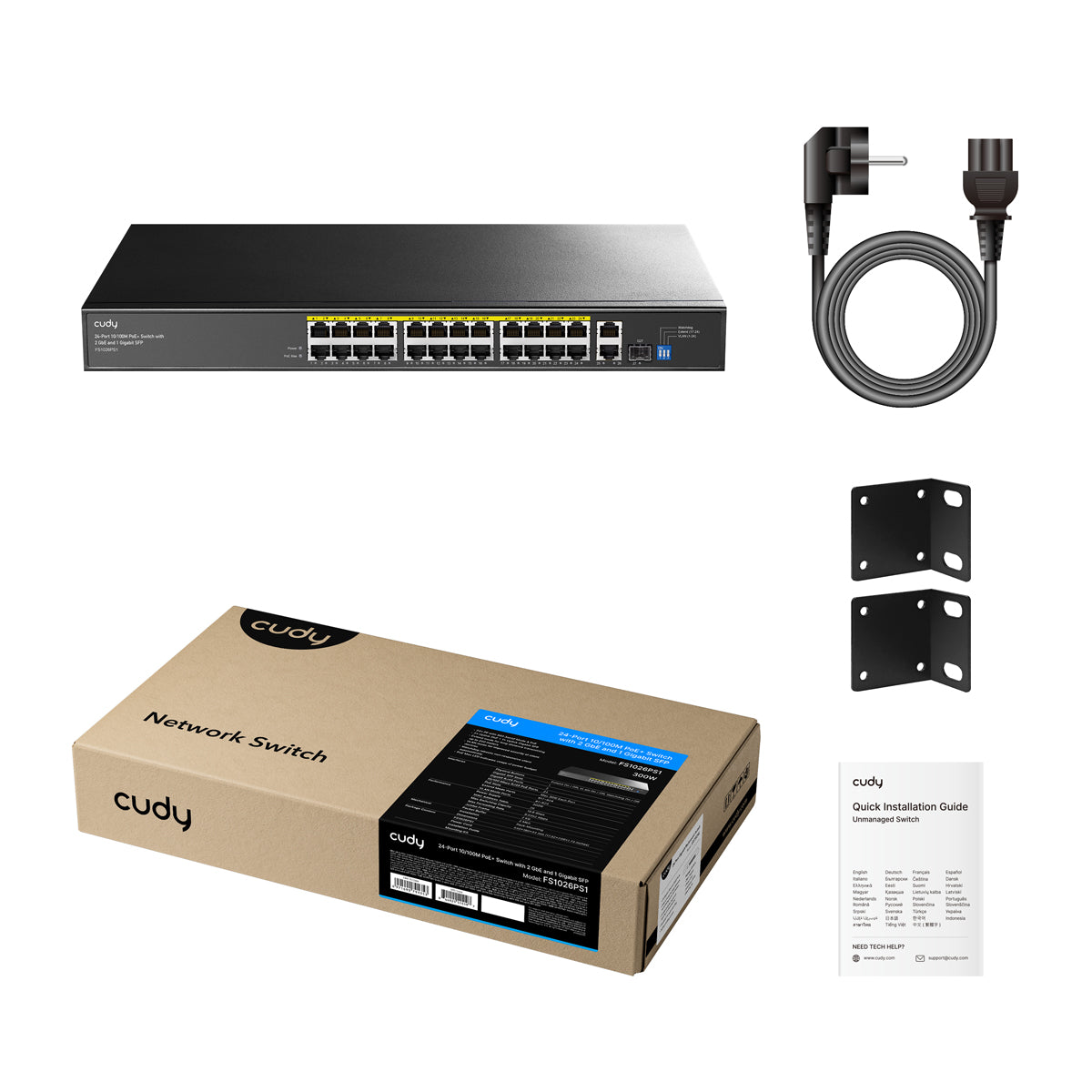

Package Contents1 × FS1026PS1 Switch, 1 × Power Cable, 1 × Rackmount Kit, 1 × Quick Installation Guide
