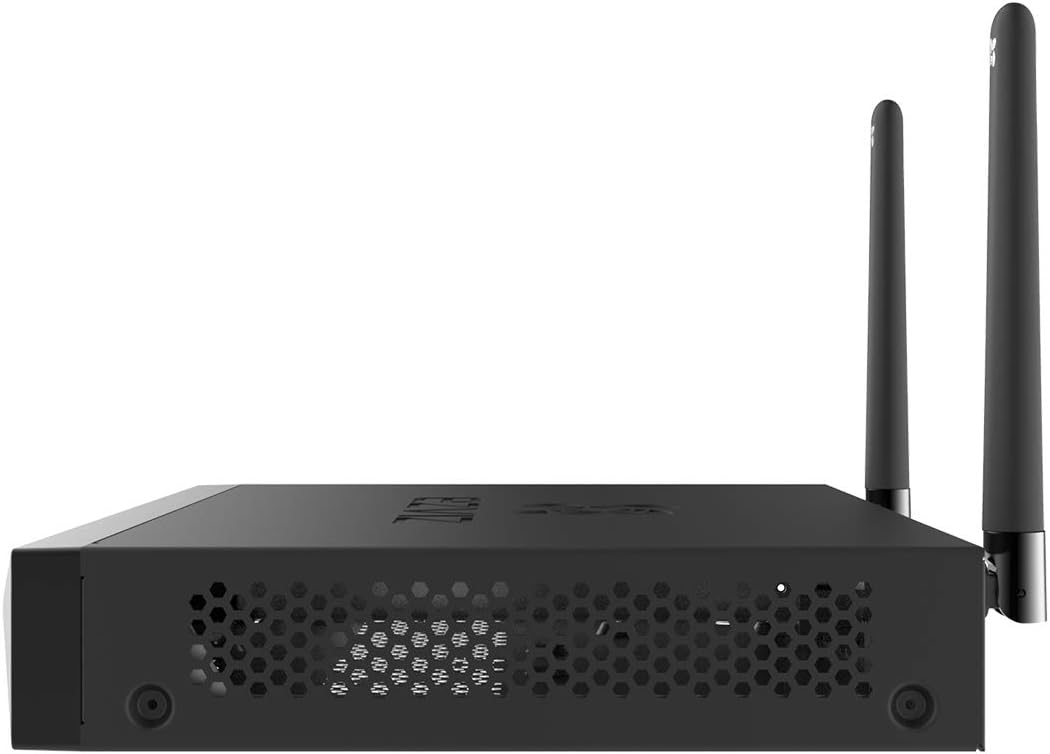

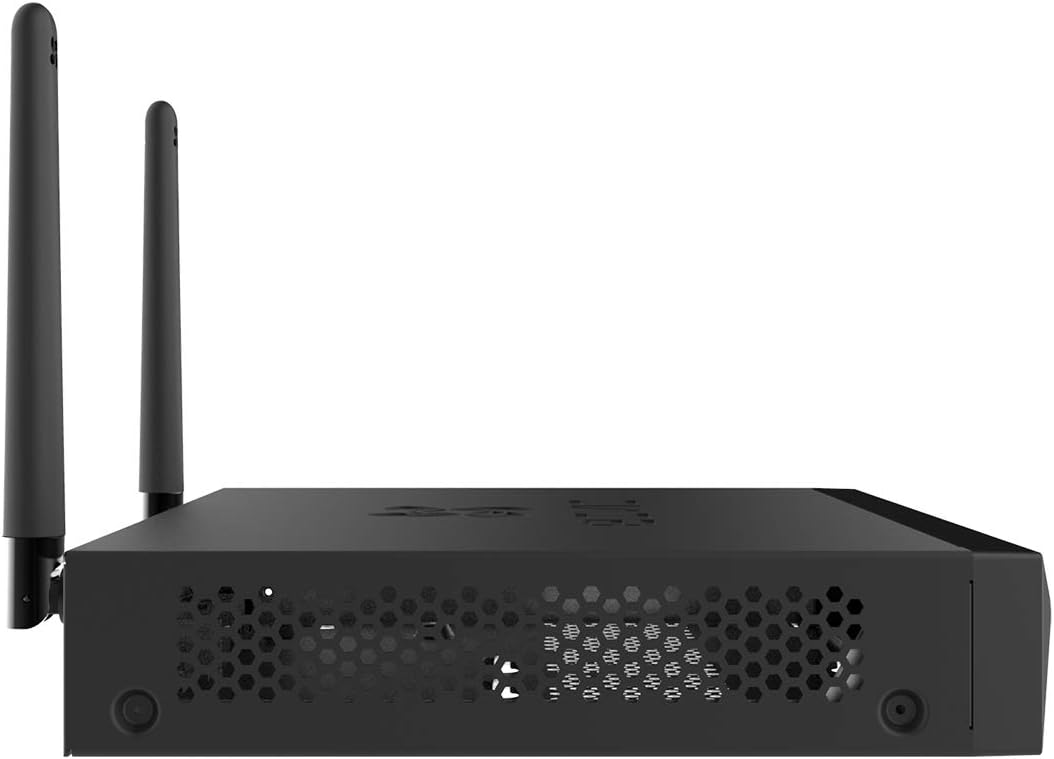

EZVIZ X5S Wireless 8‑Channel NVR

EZVIZ X5S Wireless 8‑Channel NVR
Not rated
In Stock Model: CS-X5S-R100-8W
35 JOD

8‑channel wireless/wired NVR (Network Video Recorder) supporting up to 8× 3K cameras, dual Wi‑Fi antennas, H.265/H.264 compression, HDMI/VGA outputs for live monitoring, ONVIF compatibility, and up to 8 TB HDD storage. Ideal for home and small business surveillance.

QTY

Total : 35 JOD

The EZVIZ X5S Wireless 8‑Channel NVR (CS‑X5S‑R100‑8W) is a robust network video recorder designed for residential and commercial security systems. It can connect up to eight IP cameras (wireless or wired) with resolutions up to 3 K (5 MP), providing extensive coverage for larger properties.

Equipped with dual Wi‑Fi antennas, it ensures reliable wireless connectivity with extended range, reducing the need for complex cabling. It supports H.265 and H.264 video compression, optimizing storage while maintaining high-quality video.

For local monitoring, the NVR provides HDMI and VGA outputs for high-resolution playback on monitors or TVs. It is compatible with ONVIF (V2.5) standards, allowing integration with many third-party IP cameras. Recording modes include continuous, motion-triggered, scheduled, or event-triggered, with playback available via the EZVIZ app or connected screens.

A SATA interface allows installation of a 3.5″ HDD up to 8 TB for long-term footage retention. Its compact design, intuitive setup, and remote access make it suitable for multi-camera setups in homes, offices, and retail environments.

Specifications

Feature Specification
Model CS‑X5S‑R100‑8W
Product Type Wireless/Wired Network Video Recorder (NVR)
Camera Support Up to 8 × 3K cameras (wireless or wired)
Video Compression H.265 / H.264
Wireless Connectivity Dual Wi‑Fi antennas, 2.4 GHz
Network Interface 1 × RJ‑45 Ethernet (10/100 Mbps)
Video Output 1 × HDMI (up to 2592×1944 @ 30 Hz), 1 × VGA (up to 1920×1080 @ 60 Hz)
Supported Resolutions 3K, 2K+, 2K, 1080p, UXGA, 720p, VGA, CIF
Protocol Support EZVIZ, ONVIF (V2.5)
HDD Interface 1 × SATA (3.5″ HDD up to 8 TB, not included)
USB 1 × USB 2.0
Recording Modes Continuous, Motion detection, Scheduled, Event triggered
Playback Modes Normal, Event, Instant, Tagged, Log playback
Power Supply DC 12 V / 1.5 A
Operating Temperature −10 °C to +45 °C
Dimensions 270 × 235 × 44.5 mm
Weight ~1.2 kg
Certifications CE / RoHS / WEEE / REACH
