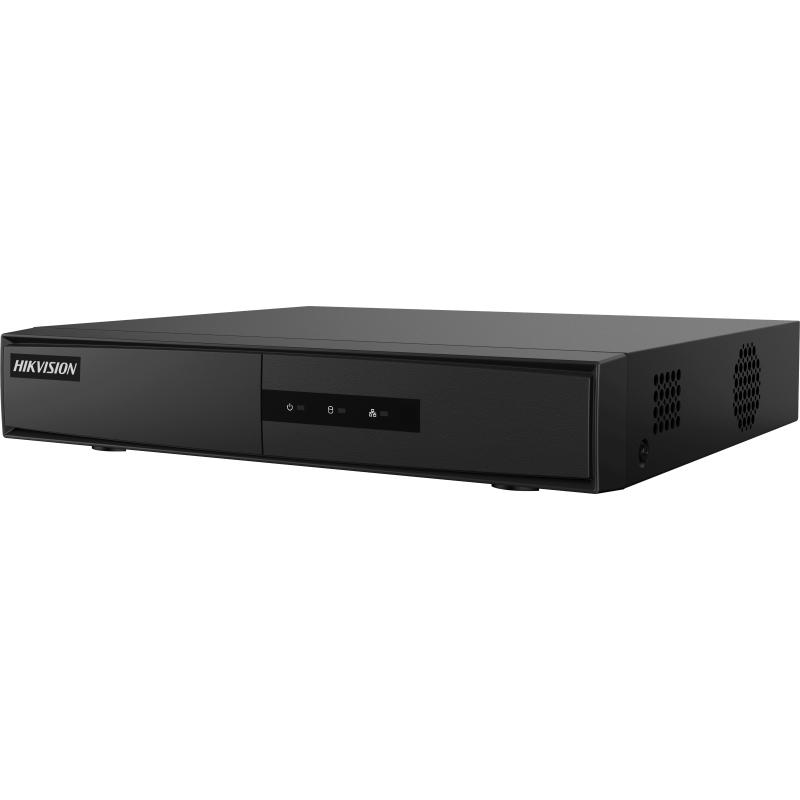

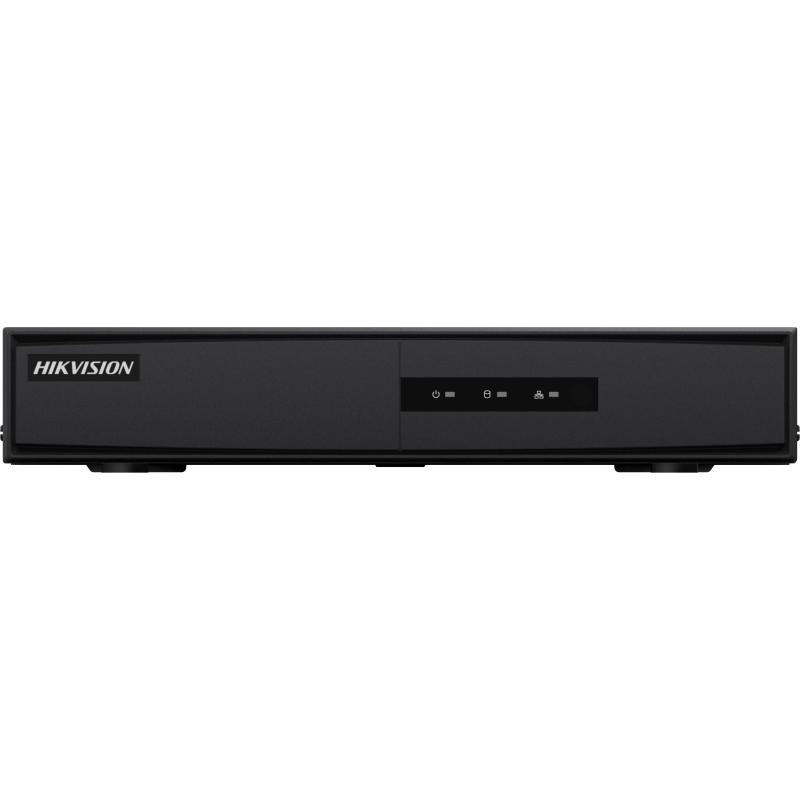

NVR Hikvision DS-7104NI-Q1/4P/M

NVR Hikvision DS-7104NI-Q1/4P/M

Not rated

In Stock Model: DS-7104NI-Q1/4P/M

60 JOD

Add to My Favourite Add to compare

Data sheet

H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
Up to 4-ch 1080p decoding capability
HDMI and VGA simultaneous output

QTY

Add to Cart

Quote Request

Total : 60 JOD

Description Specifications Customer Reviews

The Hikvision DS-7104NI-Q1/4P/M is a compact and efficient 4-channel Network Video Recorder (NVR) designed for small to medium-sized surveillance systems. It offers advanced video encoding and decoding technologies, ensuring high-quality video recording and playback. With built-in PoE (Power over Ethernet) ports, this model provides a simplified installation process by powering the connected IP cameras directly through the network cable, reducing the need for additional power supplies.

Specifications

Video & Audio
IP Video Input	4-ch
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz
VGA Output	1-ch, 1920 × 1080/60Hz
Video Decoding Format	H.265+/H.265/H.264+/H.264
Decoding Capability	1-ch@8 MP / 4-ch@1080p
Network & PoE
PoE Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Power	≤ 36 W
Standard	IEEE 802.3 af/at
Network Interface	1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
General Specifications
SATA Interface	1 SATA interface, up to 6 TB capacity
USB Interface	Rear panel: 2 × USB 2.0
Chassis	M (Metal) Mini 1U chassis
Power Supply	48 VDC, 1.35 A (Max. 10 W without HDD and PoE off)
Dimensions (W × D × H)	260 × 225 × 48 mm
Weight	≤ 1 kg (without HDD)

Customer Reviews

(0) reviews

Your email address will not be published. Required fields are marked *

YOUR RATING *

YOUR NAME *

YOUR E-MAIL

YOUR SUBJECT

YOUR Comment

Submit

Specifications

Customer Reviews

Related Item

Hikvision DS-7616NI-Q2 | 16-channel 1U 4K NVR

Hikvision DS-7604NXI-K1/4P 4-ch PoE 1U K Series AcuSense 4K NVR

Hikvision DS-7604NXI-K1 4-ch 1U K Series AcuSense 4K NVR

Hikvision DS-7732NXI-K4/16P 32-ch 1.5U 16 POE K Series AcuSense 4K NVR

Hikvision DS-7608NXI-K2/8P 8-ch PoE 1U K Series AcuSense 4K NVR

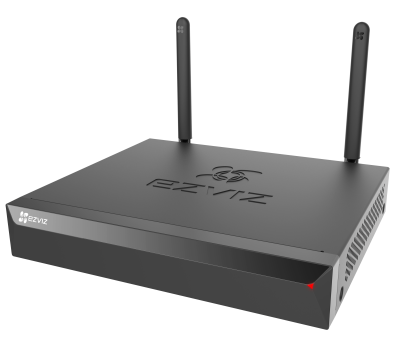

EZVIZ X5S Wireless 4‑Channel NVR
