Cudy 60W Gigabit PoE++ Injector

Cudy 60W Gigabit PoE++ Injector
Not rated
In Stock Model: POE300 1.0
25 JOD

  • Input: GbE In
  • Output: GbE Out
  • Distance: 100m Transmission Distance
  • Power: 802.3bt/at/af, Max 60W, 4-Pair
  • Pins: 4-Pair 1/2- 3/6+ 4/5+ 7/8-
  • LED: Power LED
  • Protection: Surge/ESD Protection
QTY

Total : 25 JOD

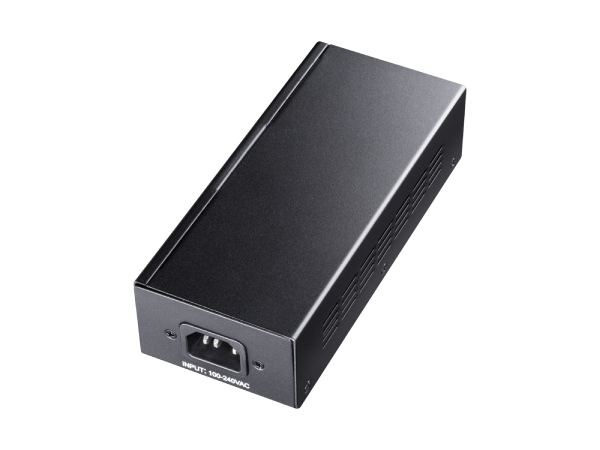

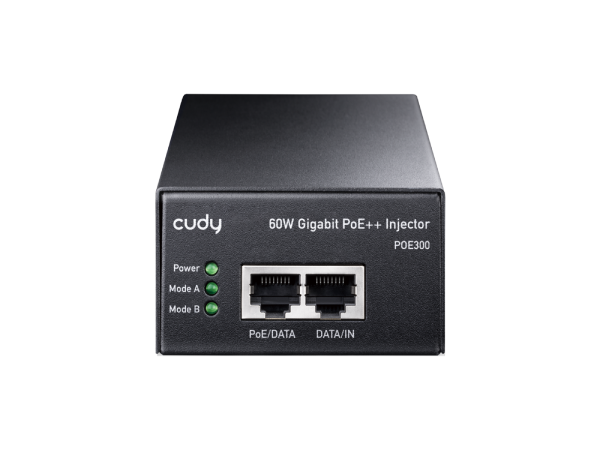

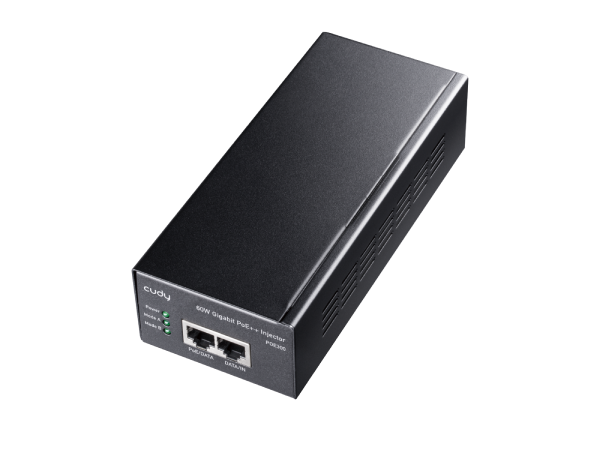

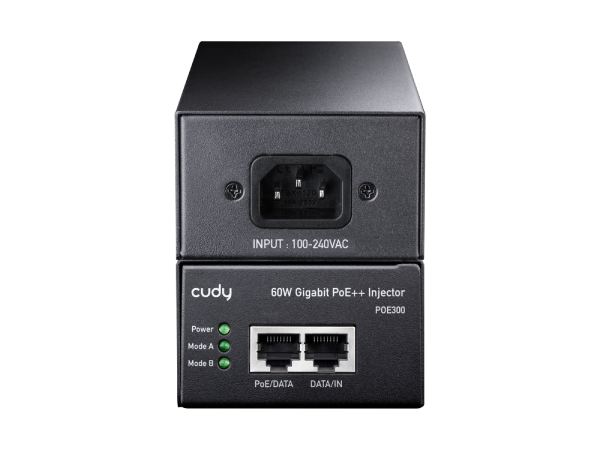

The POE300 is a high-performance PoE adapter supporting IEEE 802.3af/at/bt standards, delivering up to 60W over four pairs. It features GbE input and output ports, a transmission distance of up to 100 meters over Cat.5e or higher cable, Power LED indicators, and robust protection against surges and ESD. Compact metal casing ensures reliability, suitable for desktop or wall-mount installations.

Specifications

Hardware Specifications
Product ModelPOE300
Product Version1.0
Interface1 × 10/100/1000 Mbps RJ45 Data In Port / 1 × 10/100/1000 Mbps RJ45 PoE Out Port
PoE StandardIEEE 802.3af / 802.3at / 802.3bt (PoE++)
PoE Power BudgetUp to 60W Max
PoE Pin Assignment1/2(+), 3/6(-), 4/5(+), 7/8(-)
Power SupplyInternal AC 100-240V, 50/60Hz
Dimensions145 × 61 × 39 mm
Performance & Environment
Transmission MediaCat5 or better UTP cable
ProtectionLightning Protection, Short Circuit Protection, Over-current Protection
ManagementPlug and Play (Unmanaged)
Operating Temp0℃ to 40℃ (32℉ to 104℉)
CertificationCE, FCC, RoHS
Package Contents1 × POE300 Injector, 1 × Power Cable, Quick Installation Guide
