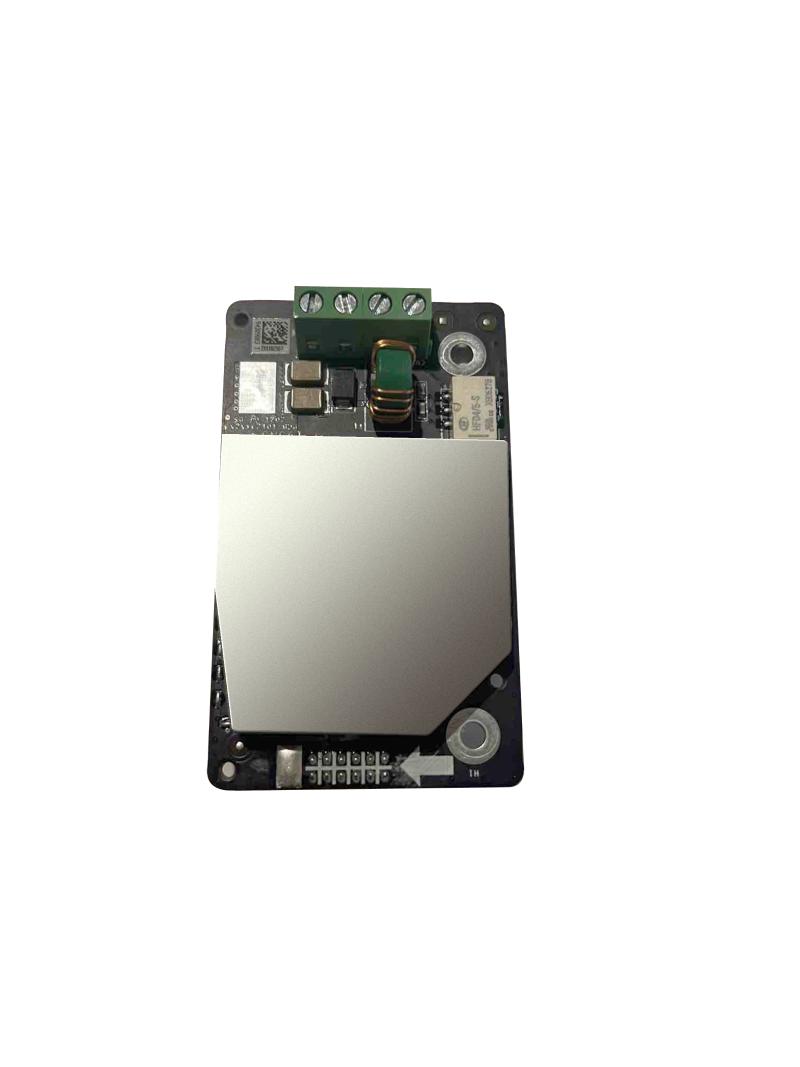

Hikvision DS-PM2-P | Power Supply Module

Hikvision DS-PM2-P | Power Supply Module
Not rated
In Stock Model: DS-PM2-P
20 JOD

The DS-PM2-P is a professional Power Supply Module specifically designed for the AX Hybrid Pro control panel. It functions as a switching power supply that converts high-voltage AC input into a stable 12V DC output, ensuring a consistent power source for the main system components and connected wired peripherals.

QTY

Total : 20 JOD

The Hikvision DS-PM2-P is a core power component for AX Hybrid Pro security systems. It is engineered to provide reliable and efficient power conversion with a wide input voltage range of 100 to 240 VAC. The module delivers a steady 12V DC supply to the control panel, supporting the overall system stability. It is built with high-quality electronic components to ensure longevity and features multiple safety protections, including over-voltage, over-current, and short-circuit protection. The module is designed for internal installation within the control panel's chassis, providing a clean and organized power management solution. It is an essential part for maintaining the operational integrity of wired intrusion systems in residential or commercial environments.

Specifications

Feature Technical Details (Official)
Input Voltage 100 to 240 VAC, 50/60 Hz
Output Voltage 12 VDC
Output Current Typical: 1.5 A / Max: 2 A
Protection Short circuit, Over-voltage, Over-current
Efficiency ≥ 80%
Operating Temperature -10 °C to 55 °C
Operating Humidity 10% to 90%
Dimensions (W x H x D) 150 mm × 65 mm × 35 mm
Weight 210 g
Compatibility AX Hybrid Pro Control Panels
