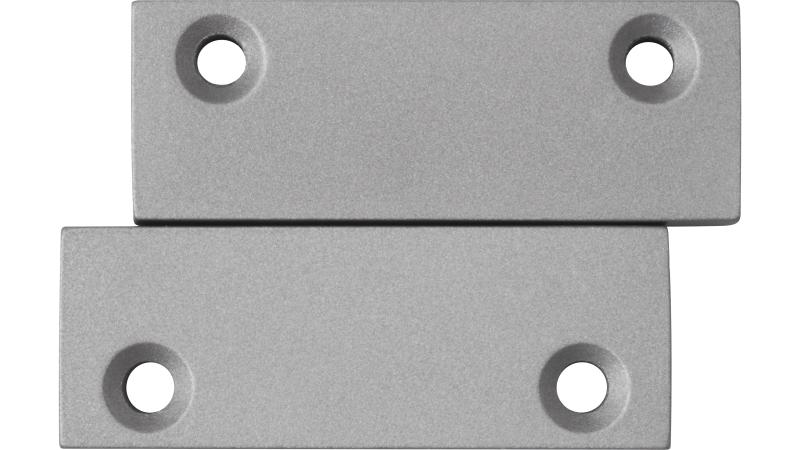

Hikvision DS-PD1-MC-MS | Wired Magnetic Contact (Metal)

Hikvision DS-PD1-MC-MS | Wired Magnetic Contact (Metal)
Not rated
In Stock Model: DS-PD1-MC-MS
8 JOD

The DS-PD1-MC-MS is a heavy-duty Wired Magnetic Contact featuring a durable metal housing. Designed for high-reliability intrusion detection, it is ideal for industrial or commercial environments where robust protection for doors and windows is required.

QTY

Total : 8 JOD

The Hikvision DS-PD1-MC-MS is a professional-grade magnetic contact sensor specifically engineered for demanding environments. Unlike standard plastic sensors, this model is encased in a zinc alloy metal shell, providing superior physical durability and resistance to wear and tear. It is primarily used to monitor the opening and closing of doors, windows, or gates in a wired intrusion system. The sensor operates using a high-quality reed switch that triggers an alarm signal when the magnetic field is interrupted by the separation of the magnet and the sensor body. Its rugged construction makes it particularly suitable for commercial warehouses, metal doors, or any application requiring a high degree of reliability and a longer service life in challenging conditions.

Specifications

Feature Technical Details (Official)
Detection Method Contact Opening
Connecting Distance ≥ 20 mm
Circuit Type Normally Closed (NC)
Connection Type Wired
Material Zinc Alloy (Metal)
Operating Temperature -10 °C to 55 °C
Dimensions (W x H x D) 13 mm × 49 mm × 10 mm
Weight 48 g
Color Silver
Application Scenario Indoor / Metal Doors
