Hikvision DS-PHA64-Kit-WB(B) | AX Hybrid Pro Alarm Kit

Not rated

In Stock Model: DS-PHA64-Kit-WB(B)

135 JOD

Add to My Favourite Add to compare

Data sheet

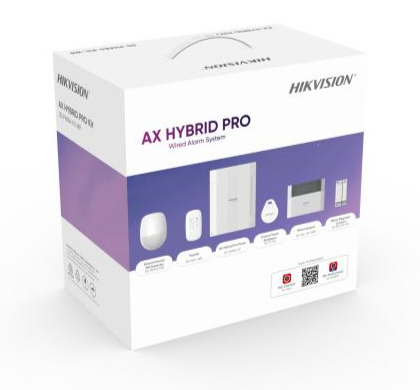

The DS-PHA64-Kit-WB(B) is an AX Hybrid Pro Alarm Kit. It features 64 zones (8 onboard, 56 expandable), 32 partitions, and 62 users. The system supports multiple communication paths including onboard LAN and PSTN, and is compatible with Speed-X bus technology. This comprehensive kit includes the control panel, an LCD keypad, PIR detectors, a magnetic contact, a keyfob, and IC tags.

QTY

Add to Cart

Quote Request

Total : 135 JOD

Description Specifications What's in the Box? Customer Reviews

The Hikvision DS-PHA64-Kit-WB(B) is a professional hybrid security kit belonging to the AX Hybrid Pro series. It offers a robust security foundation with 64 zones and 32 partitions. The kit is specifically designed to provide a complete solution out of the box, featuring the DS-PHA64-LP(B) control panel. It integrates Speed-X high-speed bus technology for efficient data and power transmission. Communication is handled via onboard LAN and PSTN, with support for optional GPRS or 3G/4G modules. The system supports up to 64 wireless keyfobs and 8 wireless sirens (via expanders). It is fully manageable through the Hik-Connect app, supporting functions like remote arming/disarming and video verification (IVas). The hardware is housed in a plastic case and includes comprehensive tamper protection for both front and rear.

Specifications

Feature	Technical Details (Official)
Zones	64 (8 onboard, 56 expandable)
Partition	32
User	Installer: 1; Administrator: 1; User: 60
Schedule	64
SMS Notification	Support (with GPRS/3G/4G module)
Phone Call Notification	Support (with GPRS/3G/4G module/PSTN)
Alarm Receiving Center (ARC)	ISUP 5.0, SIA DC09 (SIA level 2, Contact ID)
Tools	Hik-Connect/Hik-Central/Web Host/iVMS-4200/Convergence Cloud
Programming	Web/iVMS-4200/Hik-Central/Hik-ProConnect
Firmware Upgrade	Web/iVMS-4200/Hik-Central/Hik-ProConnect
Arming Modes	Away/Stay
Automatic Arm/Disarm Schedule	Support
Video Verification (IVas)	Support
Onboard Video Clip	4
Network Interface	1 RJ45 10M/100M Ethernet
PSTN	1 Onboard
Speed-X Bus	1
RS-485	1
Siren Output	1 Onboard (12 V, 500 mA)
Alarm Output	2 Onboard, expandable up to 60
Tamper-Proof	Support (Front and Rear)
Power Interface	100 to 240 VAC
Power Consumption	Full load: 45 W; Standby: 4 W
Battery Type	Lead acid battery (12 V 7 Ah, battery is not included by default)
Battery Life	Up to 36 hours
Operating Temperature	-10 °C to 55 °C
Operating Humidity	10% to 90%
Dimensions (W x H x D)	261 mm × 199 mm × 86.4 mm
Weight	985 g
Material	Plastic
Keyfob	64
Wireless Siren	8
Tag Reader	8
Keypad	8

What's in the Box?

1x DS-PHA64-LP(B): Hybrid Control Panel that manages 64 zones and coordinates all system sensors.
1x DS-PK1-LRT-HWB: Wired LCD Keypad with a built-in card reader for system control and status display.
1x DS-PD1-MC-WS: Wired Magnetic Contact for securing doors or windows against unauthorized opening.
2x DS-PDP18-EG2(B): Wired PIR Motion Detectors (2 units) with an 18-meter detection range to secure indoor spaces.
1x DS-PKF1-WB: Wireless Keyfob for convenient remote arming and disarming of the alarm system.
2x DS-PT-M1: IC Tags (2 units) for quick system disarming by swiping them over the keypad reader.
