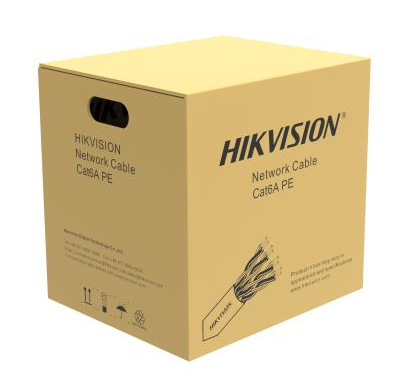

Hikvision DS-1LN6AUSPE | U/UTP Cat6A Network Cable

Not rated

In Stock Model: DS-1LN6AUSPE

175 JOD

Add to My Favourite Add to compare

Data sheet

The DS-1LN6AUSPE is a high-performance Category 6A (Cat6A) U/UTP Network Cable designed for 10-Gigabit Ethernet applications. It features 99.97% high-purity Oxygen-Free Copper (OFC) conductors and a durable LSZH (Low Smoke Zero Halogen) outer sheath, ensuring superior data transmission speeds, reduced crosstalk, and enhanced fire safety for professional networking infrastructures.

QTY

Add to Cart

Quote Request

Total : 175 JOD

Description Specifications Customer Reviews

The Hikvision DS-1LN6AUSPE is an advanced Category 6A (Cat6A) unshielded twisted pair (U/UTP) cable engineered for next-generation network environments requiring bandwidth up to 500 MHz. It supports 10GBASE-T (10-Gigabit Ethernet) over distances up to 100 meters, making it ideal for data centers and high-speed enterprise backbones. The cable is constructed with 23 AWG solid copper conductors of 99.97% purity to ensure exceptional signal integrity and minimal attenuation. To combat alien crosstalk and internal interference, it utilizes a sophisticated internal design including a central cross separator. The LSZH jacket provides an essential safety layer by emitting very low levels of smoke and no toxic halogen gases in the event of a fire. Optimized for high-power PoE (Power over Ethernet) applications, it provides reliable energy delivery for high-end IP cameras and network peripherals.

Specifications

Feature	Technical Details (Official)
Category	Cat.6A
Core Diameter	0.57 mm ± 0.005 mm (23 AWG)
Conductor Material	Solid Oxygen-Free Copper (99.97% purity)
Insulation Material	HDPE (High Density Polyethylene)
Separator	Yes (Cross Spline)
Sheath Material	LSZH (Low Smoke Zero Halogen)
Sheath Color	Blue / Orange (Region specific)
External Diameter	6.8 mm ± 0.4 mm
Bandwidth	Up to 500 MHz
Data Rate	Up to 10 Gbps
Reference Standard	ANSI/TIA-568.2-D, ISO/IEC 11801
Length	305 m ± 1.5 m
Operating Temperature	-20 °C to 75 °C
