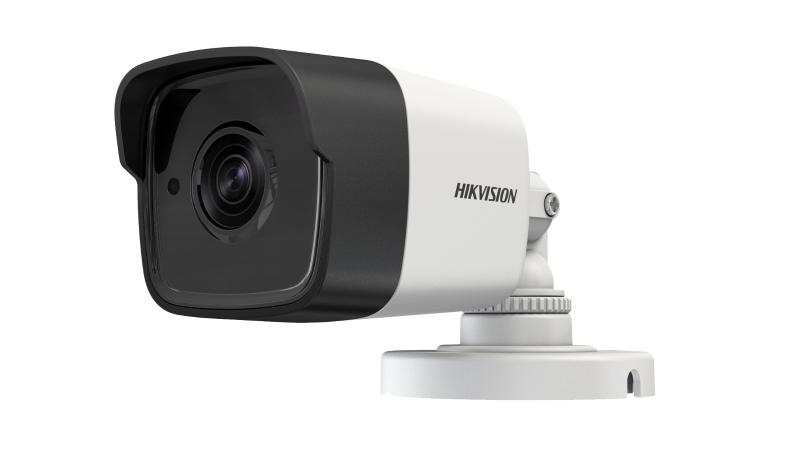

Hikvision DS-2CE16H0T-ITPF 5 MP Fixed Mini Bullet Camera

Not rated

In Stock Model: DS-2CE16H0T-ITPF(C)

15 JOD

Add to My Favourite Add to compare

Data sheet

5 MP bullet camera
EXIR 2.0: advanced infrared technology with 25 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Lens Size

QTY

Add to Cart

Quote Request

Total : 15 JOD

Description Specifications Customer Reviews

The Hikvision DS-2CE16H0T-ITPF(C) is a 5 MP fixed bullet camera designed for high quality surveillance. It features advanced EXIR 2.0 infrared technology for clear night vision up to 20 meters. The camera supports four switchable video outputs (TVI/AHD/CVI/CVBS), ensuring compatibility with various systems. With an IP67 rating, it is resistant to water and dust, making it suitable for harsh environmental conditions. This camera offers a reliable and cost-effective solution for both indoor and outdoor security monitoring.

Specifications

Image Sensor	5 MP CMOS image sensor
Max. Resolution	2560 (H) × 1944 (V)
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System	PAL/NTSC
Lens Type	2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV	2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142° 2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112° 6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°
Lens Mount	M12
Image Parameters Switch	STD / HIGH-SAT
Image Settings	Brightness, Sharpness, Mirror, Smart IR
Frame Rate	TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC
Day/Night Mode	Auto / Color / BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC, HLC
White Balance	ATW / MANUAL
AGC	Support
Video Output	Switchable TVI/AHD/CVI/CVBS
Material	Plastic
Dimension	60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47")
Weight	Approx. 147 g (0.32 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ±25%
Consumption	Max. 4.3 W
IR Range	Up to 25 m
Protection	IP67
