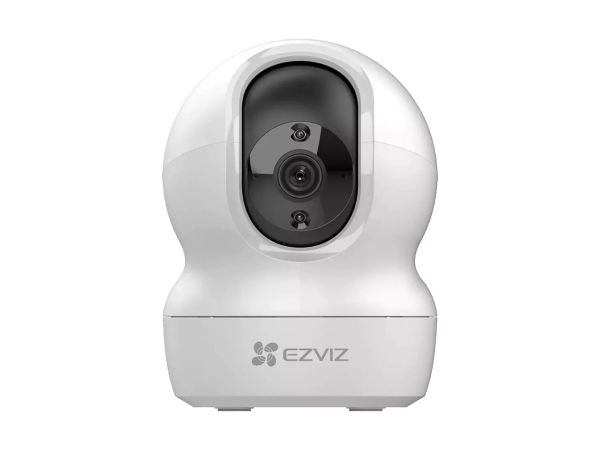

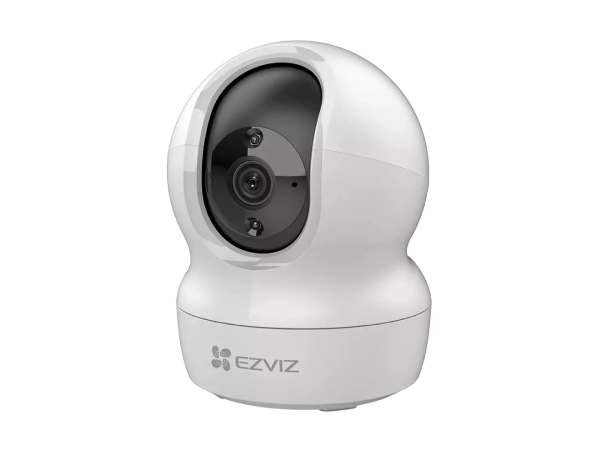

EZVIZ CP1 (3MP) Smart Wi-Fi Pan & Tilt Camera, 2K Resolution, 360° Visual Coverage, and Smart Tracking

Not rated

In Stock Model: CS-CP1-A0-2C3WF

21 JOD

Add to My Favourite Add to compare

Data sheet

Image Sensor: 1/2.7" 3MP Progressive Scan CMOS
Lens: 4 mm, view angle: 104° (Diagonal), 85° (Horizontal), 55° (Vertical)
Day & Night: IR-cut filter with auto-switching
IR Night Vision Distance: Up to 10 m
Resolution: 2304 × 1296 (2K)
Smart Alerts: Motion Detection
Two-way Talk: Supported
Storage: MicroSD card slot up to 256 GB, EZVIZ Cloud Storage

QTY

Add to Cart

Quote Request

Total : 21 JOD

Description Specifications Customer Reviews

The CP1 3MP is a smart Wi-Fi pan & tilt camera that delivers 2K resolution video, full 360° coverage, and smart motion tracking. With two-way audio, night vision up to 10 meters, H.265 video compression, and flexible storage options including MicroSD and EZVIZ Cloud, it ensures your home is fully monitored. Easy to install and operate via the EZVIZ App, the CP1 provides reliable security with privacy features like sleep mode and customizable alerts.

Specifications

Camera
Image Sensor	F2.0@1/2.7" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	4 mm, view angle: 104° (Diagonal), 85° (Horizontal), 55° (Vertical)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	Digital WDR
Video & Audio
Video Compression	H.265 / H.264
Video Bit Rate	Quad HD; Full HD; HD; Standard. Adaptive bit rate
Max. Resolution	2304 × 1296
Frame Rate	Max. 20 fps; Self-Adaptive during network transmission
Network
Smart Alarm	Motion detection
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ cloud proprietary protocol
Interface Protocol	EZVIZ cloud proprietary protocol
Storage	Micro SD card slot (Max. 256 GB)
Power	Micro USB
Wired Network	RJ45 × 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
Output Power (EIRP)	19 dBm
Antenna Gain	1.9 dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113°F), Humidity 95% or less (non-condensing)
Power Supply	DC 5V/1A
Power Consumption	Max. 5W
IR Range	Max. 10 m (32.81 ft)

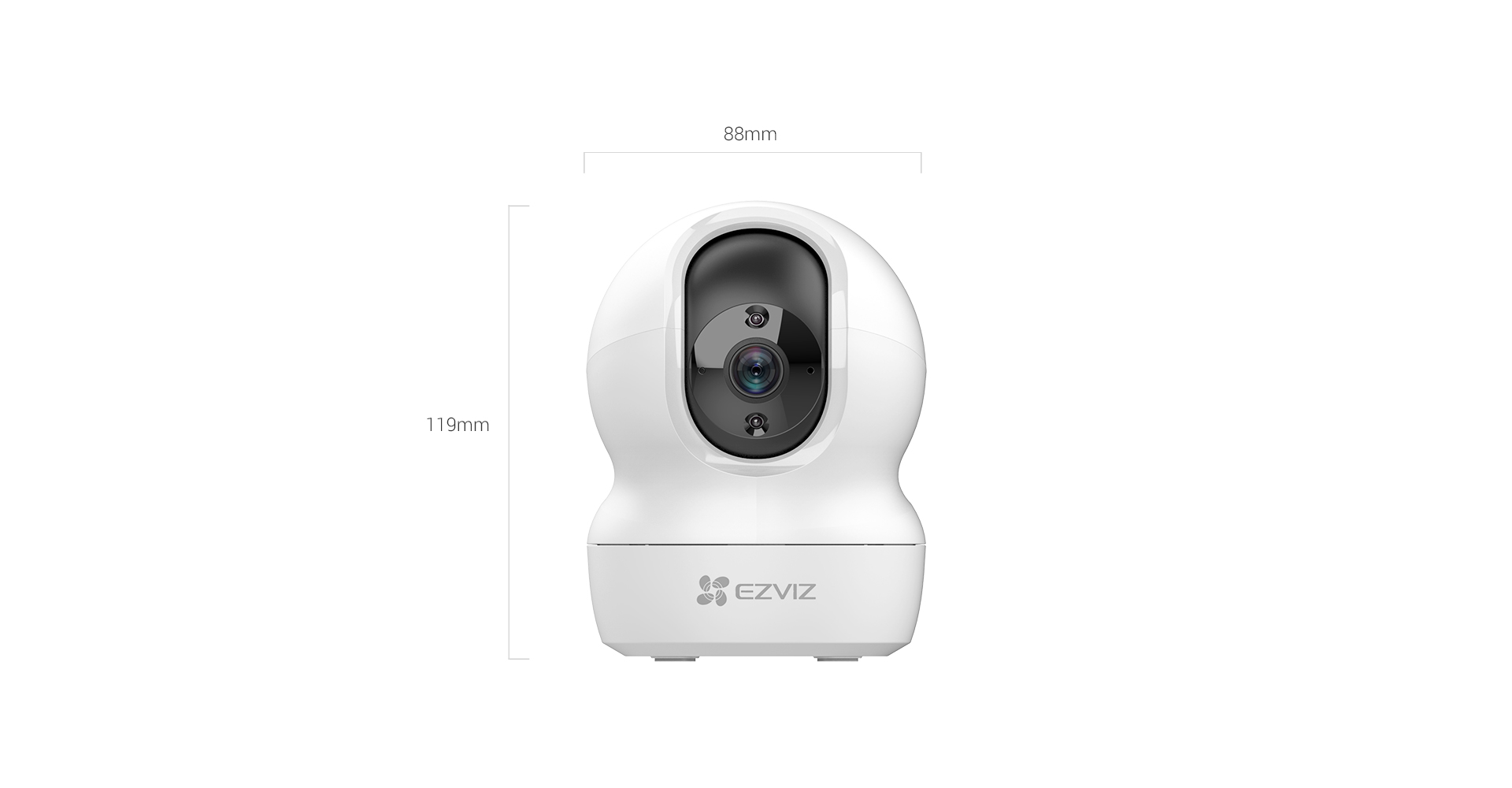

Dimensions	88 × 88 × 119 mm (3.46 × 3.46 × 4.69 inch)
Packaging Dimensions	103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Bare Weight	218 g (7.69 oz)
In the Box
In the Box	- CP1 Camera - Base - Screw Kit - Power Cable 3m (9.8 ft.) - Drill Template - Power Adapter - Quick Start Guide - Regulatory Information
Certifications
Certifications	FCC / UL / CE / WEEE / REACH / ROHS
