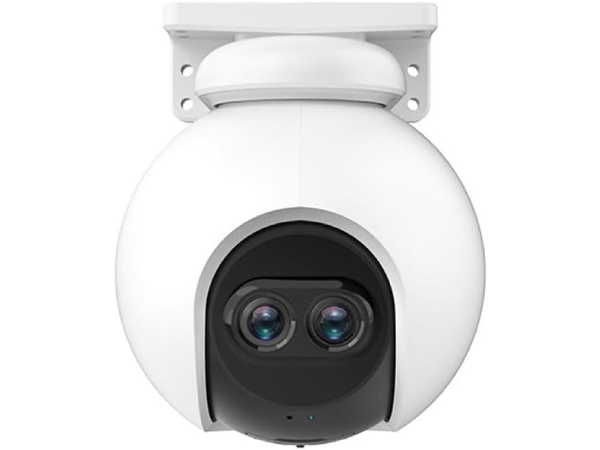

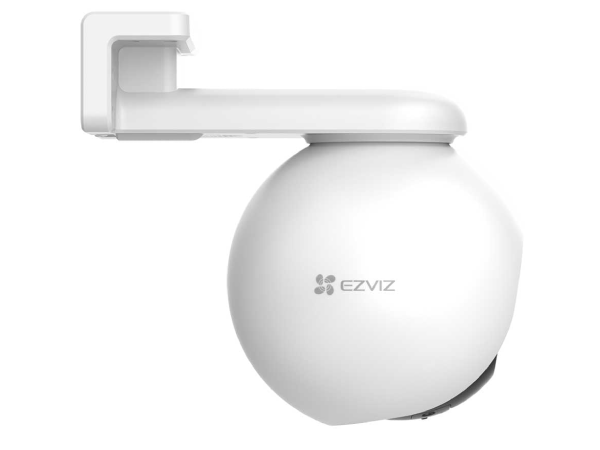

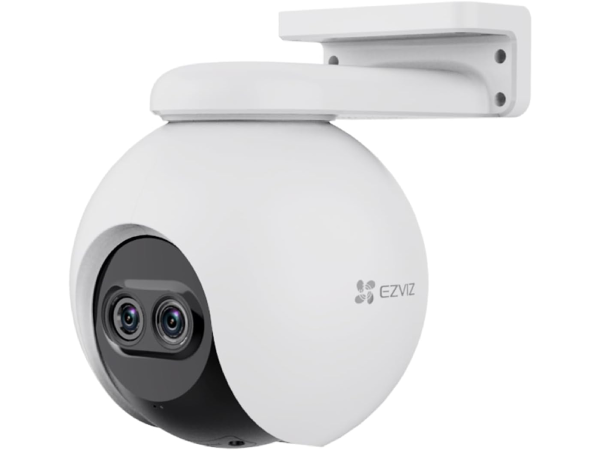

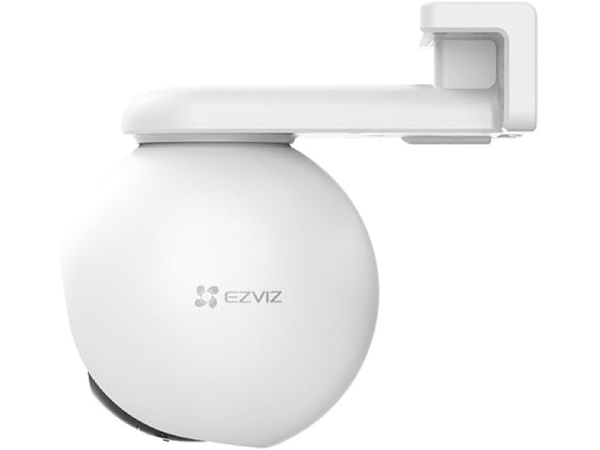

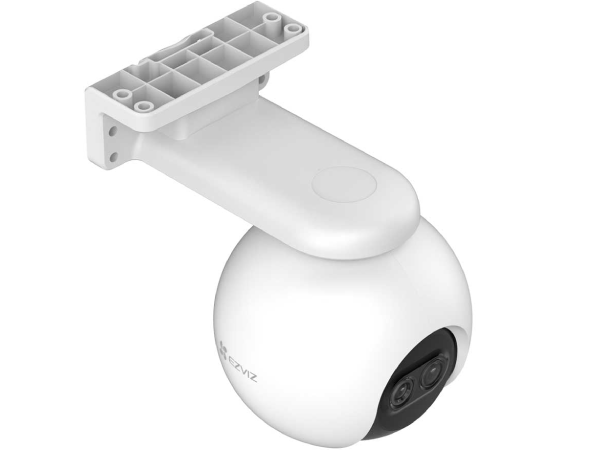

EZVIZ C8PF Dual-Lens Pan & Tilt Wi-Fi Camera

Not rated

Out Of Stock Model: CS-C8PF-A0-6E22WFR

85 JOD

Add to My Favourite Add to compare

Data sheet

Image Sensor: Dual 1/2.7" Progressive Scan CMOS
Lens: 2.8 mm @ F1.6 + 12 mm @ F1.6
Day & Night: IR-cut filter with auto switching
IR Night Vision Distance: Up to 30 m
Resolution: 1920 × 1080 (Full HD)
Smart Alerts: AI-powered Human Shape Detection
Two-way Talk: Supported
Storage: MicroSD Card slot (up to 512 GB), EZVIZ Cloud Storage

QTY

Add to Cart

Quote Request

Total : 85 JOD

Notify me when available

Description Specifications Customer Reviews

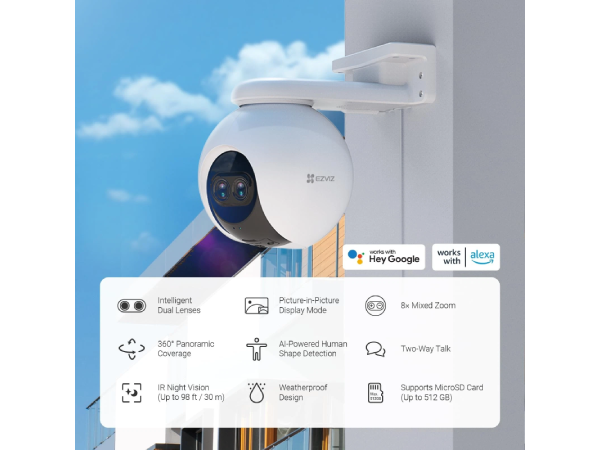

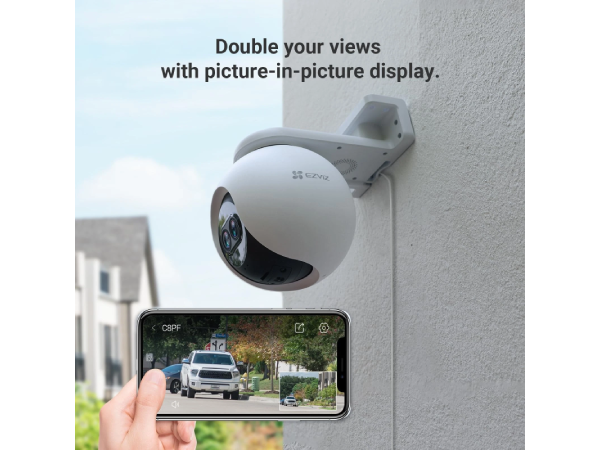

The EZVIZ C8PF Dual-Lens Pan & Tilt Camera offers 360° panoramic coverage, AI-powered human shape detection, and advanced dual-lens technology with 8× mixed zoom. Enjoy picture-in-picture display, IR night vision up to 30 meters, two-way talk, weatherproof design, and flexible storage options including MicroSD card (up to 512 GB) and EZVIZ Cloud. Protect your home day and night with high-resolution 1080p video and smart alerts.

Specifications

Camera
Image Sensor	Dual 1/2.7" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	2.8 mm @ F1.6 + 12 mm @ F1.6
Pan & Tilt Angle	Pan: 340°, Tilt: 80°
Minimum Illumination	0.05 Lux @(F1.6, AGC ON), 0 Lux with IR
Lens Mount	M12
Day & Night	IR-cut filter with auto switching
DNR	3D DNR
WDR	Digital WDR
BLC	Supports
Black & White Night Vision	Up to 30 m / 98 ft
Video & Audio
Max Resolution	1920 × 1080
Frame Rate	Max: 15 fps, self-adaptive during network transmission
Video Compression	H.265 / H.264 (H.265 Main Profile)
Video Bit Rate	Full HD / HD / Standard (Adaptive)
Audio Bit Rate	Self-Adaptive
Max Bitrate	2 Mbps
Network
Wi-Fi Standard	IEEE802.11b/g/n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing	AP pairing
Protocol / Interface	EZVIZ Cloud Proprietary Protocol
Wired Network	RJ45 × 1 (10M/100M Adaptive Ethernet Port)
Function
Smart Alarm	AI-powered Human Shape Detection
Customized Alert Area	Supports
Audio	Supports mic
General Function	Anti-flicker, dual-stream, heart beat, password protection, watermark
Storage
Local Storage	MicroSD card slot (Max. 512GB)
Cloud Storage	EZVIZ cloud storage
General
Operating Conditions	-30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing)
IP Grade	Weatherproof design
Power Supply	DC 12V / 1A
Power Consumption	MAX. 12W
Dimensions	154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch)
Packaging Dimensions	197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch)
Weight	Product: 578 g (20.39 oz), With package: 938 g (33.09 oz)
In the Box
Items Included	C8PF Camera, 1.5-Meter Power Adapter, Screw Kit, Waterproof Kit, Drill Template, Regulatory Information, Quick Start Guide
Certifications
Certifications	UL / FCC / CE / WEEE / REACH / RoHS
