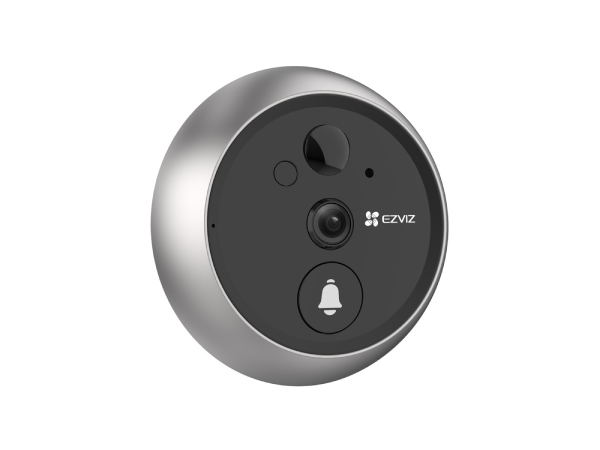

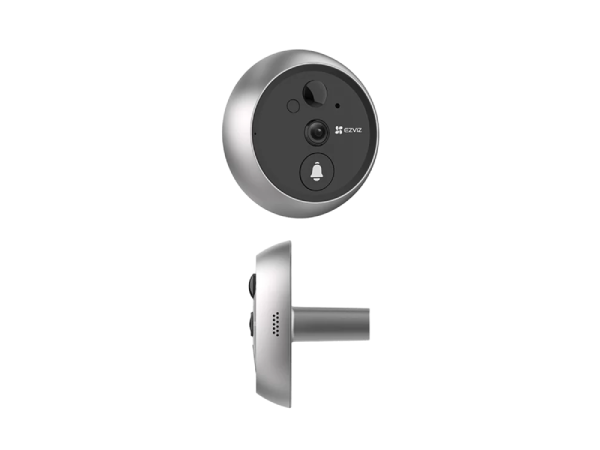

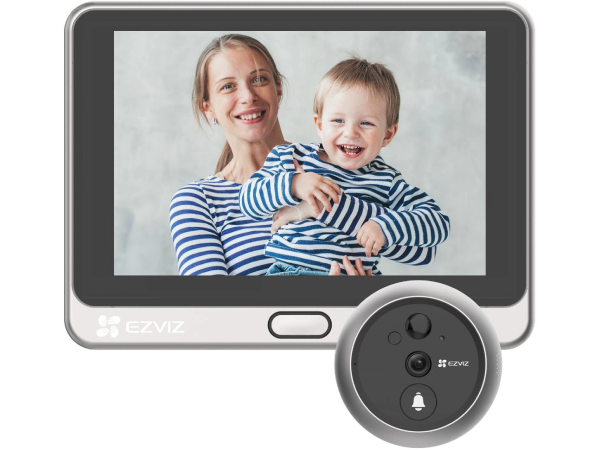

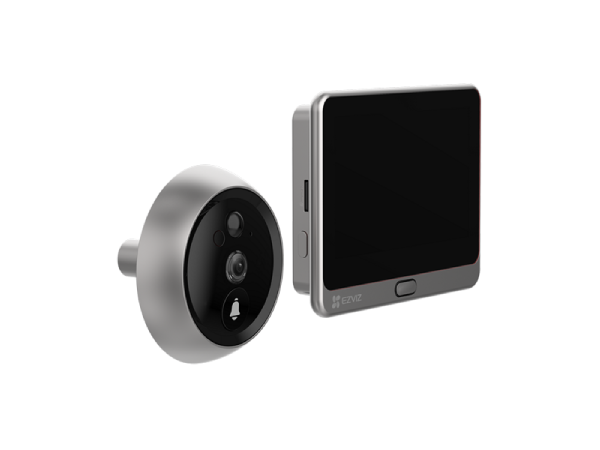

EZVIZ DP2 2K Wire-Free Peephole Doorbell with 4.3-Inch Color Touch Screen, 2K Resolution, 166° Ultra-Wide View, and Smart Human Motion Detection

Not rated

In Stock Model: CS-DP2-R100-6E3WPFBS

85 JOD

Add to My Favourite Add to compare

Data sheet

Display: 7-inch IPS full touch screen with a clear 1024×600 resolution for easy viewing and control.
Smart Integration: Seamlessly connects with EZVIZ devices including video doorbells, cameras, and smart locks.
Wireless Design: Enjoy hassle-free setup and placement with built-in Wi-Fi and a rechargeable battery.
Live View & Playback: Instantly access real-time video feeds and review recorded clips on one screen.
Two-Way Talk: Communicate directly with visitors using the built-in microphone and high-power speaker.
Connectivity: Supports up to 30 EZVIZ devices, expandable via OTA updates for full home coverage.
Flexible Placement: Can be wall-mounted, placed on a desk, or used as a portable control tablet.
Smart Control Hub: Centralizes control for all EZVIZ smart home and security devices in one interface.
Remote Access: Manage and monitor your devices anytime, anywhere via the EZVIZ App.

QTY

Add to Cart

Quote Request

Total : 85 JOD

Description Specifications Customer Reviews

The EZVIZ SD7 Smart Screen is the perfect hub for your home security system. Featuring a 7-inch IPS touch display, the SD7 allows you to manage all your EZVIZ devices from one place, including cameras, video doorphones, and smart locks. With live view, video playback, two-way talk, and wireless setup, it offers flexible placement anywhere in your home. The rechargeable 4,600 mAh battery and Type-C charging ensure continuous operation, while remote access via the EZVIZ app keeps you connected even when away. Elegant, compact, and user-friendly, the SD7 integrates seamlessly into any modern smart home.

Specifications

General

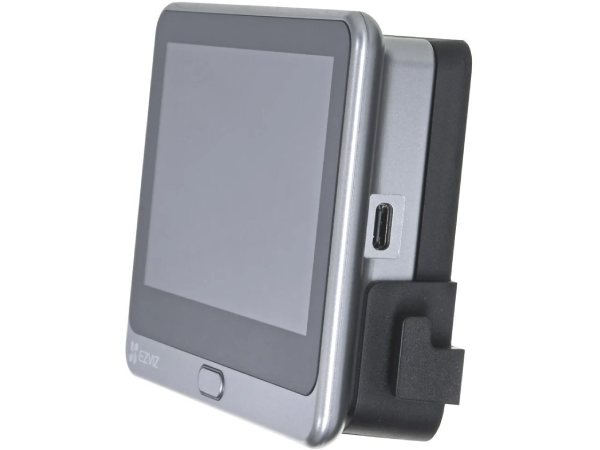

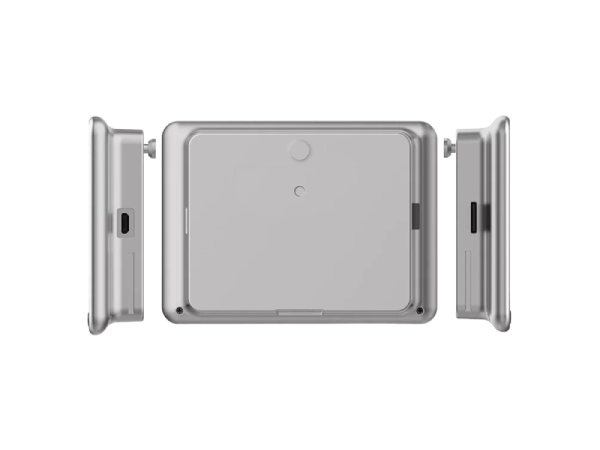

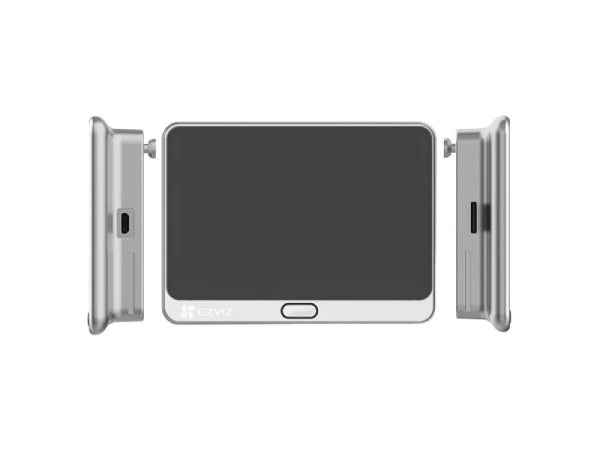

Dimensions	Screen and Base: 115.5 × 85.5 × 24.5 mm (4.55 × 3.37 × 0.96 in) Camera: 71 × 71 × 48.3 mm (2.80 × 2.80 × 1.90 in)
Weight	Product: 320 g (11.29 oz) With package: 595 g (20.99 oz)

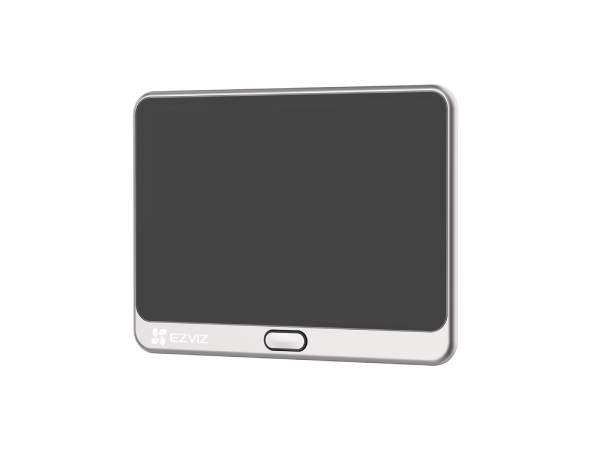

Screen	4.3-inch Color Touch Screen
Color	Silver
Buttons	Doorbell button, Power button, Screen wake-up button

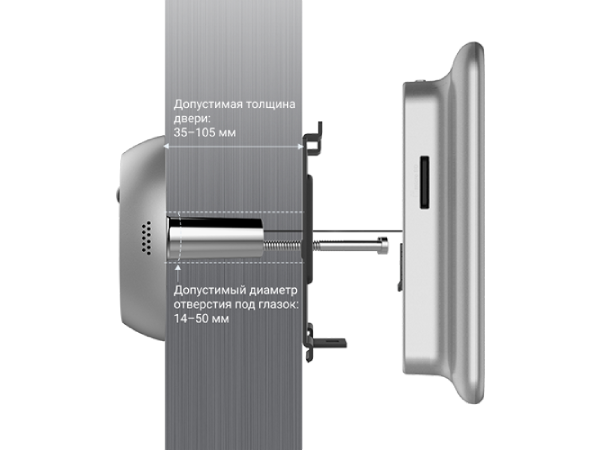

Supported Peephole Diameter	14 mm to 50 mm (0.55 in to 1.97 in)
Supported Door Thickness	35 mm to 105 mm (1.38 in to 4.13 in)
Operating Conditions	-10°C to 45°C (14°F to 113°F), Humidity 95% or less (non-condensing)
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Lens	2.0mm @ F2.0, Viewing angle: 166° (Diagonal), 136° (Horizontal), 80° (Vertical)
Max. Resolution	2K / 3MP
Day / Night Switch	ICR Infrared Filter
IR Night Vision Distance	Up to 5 m / 16.4 ft
Video & Audio
Video Frame Rate	15 fps
WDR	DWDR
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Ringtones	Up to 5 ringtones (volume adjustable)
Function
Detection	Advanced PIR Motion Detection
PIR Angle	110°
PIR Distance	Up to 6 m / 20 ft
PIR Sensitivity	Adjustable
Image Distortion Correction	Supported
Local Storage	Supports MicroSD Card (Up to 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay (Subscription required)
General Function	Cloud video encryption, image encryption
Network
Protocol	EZVIZ Cloud Proprietary Protocol
Video Intercom	Local and Remote Video Intercom
Wi-Fi Standard	IEEE802.11b / g / n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Security	64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
Transmission Rate	11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Power
Wiring	Hard-wired
Power Supply	DC 5V ±10%
Power Consumption	Max. 2.2 W
In the Box
DP2 2K Peephole Doorbell, Panel, Mounting Base, Base Cover, Buckle, Screws ×6, Power Cable, Regulatory Information, Quick Start Guide
Certifications
CE / REACH / WEEE / RoHS / UKCA
