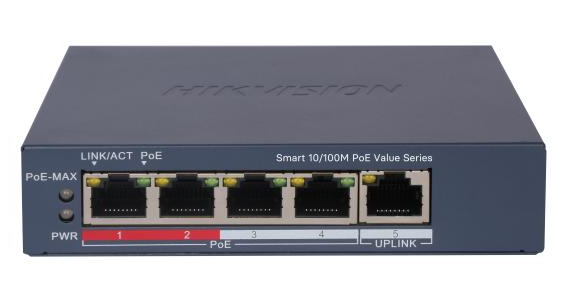

Hikvision DS-3E1105P-EI/M | 5-Port 10/100 Mbps Smart Managed PoE Switch

Not rated

In Stock Model: DS-3E1105P-EI/M

22 JOD

Add to My Favourite Add to compare

Data sheet

The DS-3E1105P-EI/M is a 5-port Smart Managed PoE Switch featuring 4 PoE ports and 1 RJ45 uplink. It provides a 35 W power budget, supports 6 KV surge protection, and enables intelligent network management via Hik-Central/Hik-Partner Pro, including remote topology visualization and health monitoring.

QTY

Add to Cart

Quote Request

Total : 22 JOD

Description Specifications Customer Reviews

The Hikvision DS-3E1105P-EI/M is an entry-level Smart Managed Switch designed for small-scale security and networking environments. It features four 10/100 Mbps PoE ports and one 10/100 Mbps uplink port. As part of the Smart Managed Series, it allows users to view network topology, monitor network health, and receive real-time device alarms through Hik-Partner Pro or Hik-Central. The switch is built for reliability with 6 KV surge protection for PoE ports and supports a total PoE power budget of 35 W. Its compact metal housing and fanless design make it ideal for quiet, space-constrained installations where intelligent power management and remote maintenance are required.

Specifications

Network Parameters
Port Number	4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port
Forwarding Mode	Store-and-forward switching
MAC Entity Table	2 K
Switching Capacity	1 Gbps
Packet Forwarding Rate	0.744 Mpps
Internal Cache	768 Kbits
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	Ports 1 to 4
Max. Port Power	30 W
PoE Power Budget	35 W
General Specifications
Shell	Metal material, fan-free design
Weight	Approx. 0.23 kg
Dimensions (W × H × D)	121 mm × 27.5 mm × 83.1 mm
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Power Supply	48 VDC, 0.8 A
Max. Power Consumption	38 W
Surge Protection	6 KV
