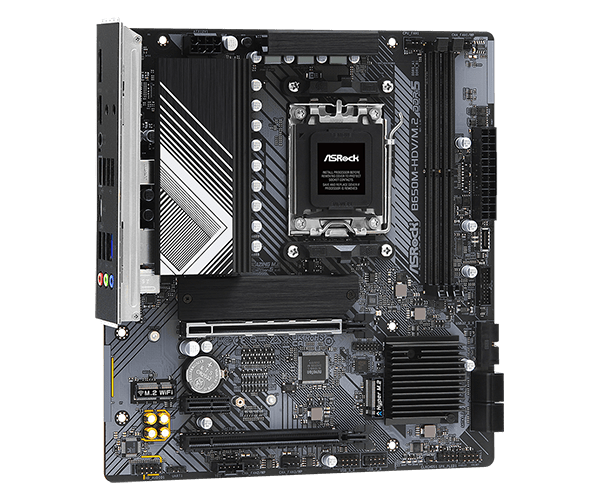

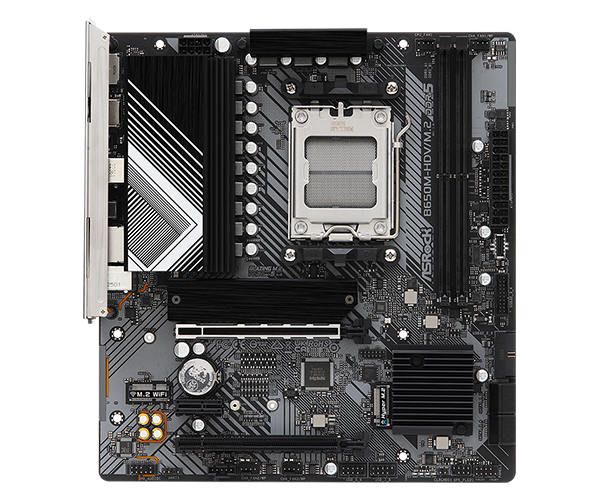

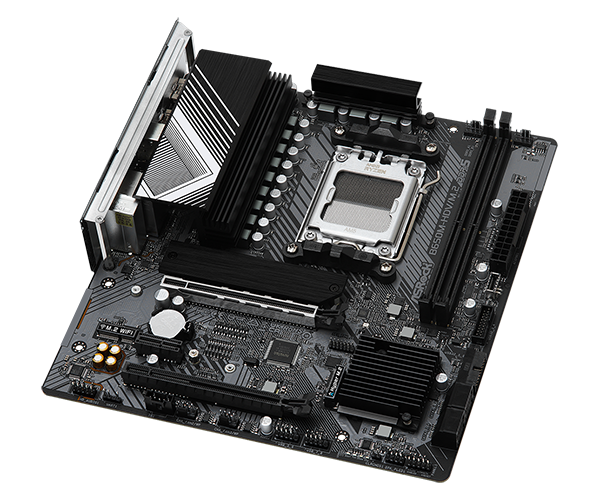

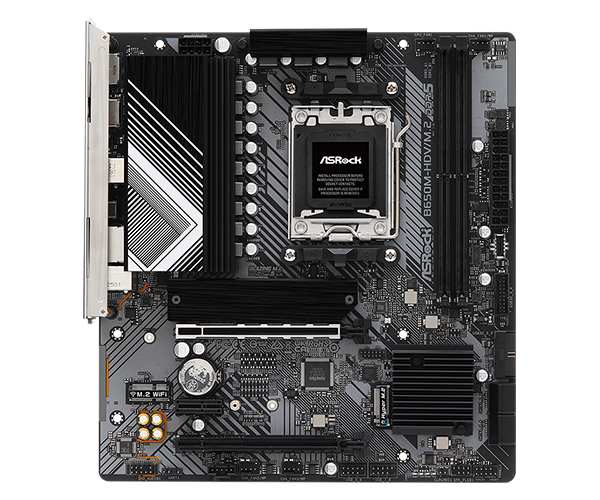

The ASRock B650M‑HDV/M.2 is a budget‑friendly Micro‑ATX AM5 motherboard designed for AMD Ryzen™ 9000, 8000 & 7000 Series processors. It supports DDR5 memory up to 7200+ MHz (OC) with dual‑channel architecture and provides essential expansion with PCIe 4.0 x16 and PCIe 4.0 x1 slots, plus an M.2 Key E for optional Wi‑Fi modules.
For storage, the board offers a Blazing M.2 slot (PCIe Gen5x4) for next‑gen SSDs and a Hyper M.2 slot (PCIe Gen4x4) along with 4 SATA3 connectors. Graphics outputs include HDMI 2.1 and DisplayPort 1.4 (when paired with a CPU with iGPU).

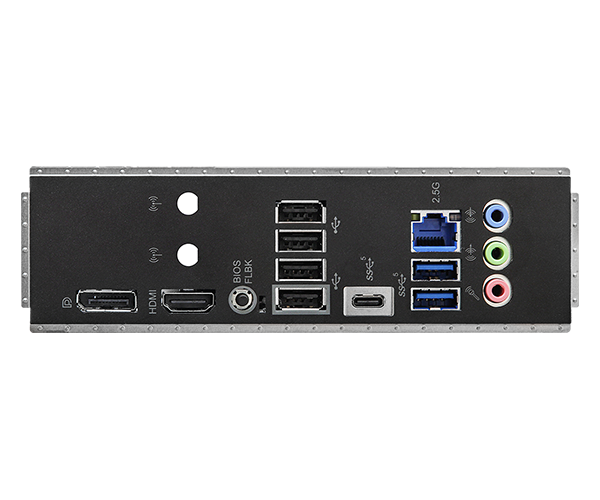

Networking is covered by Dragon 2.5G LAN, and audio is handled by a Realtek ALC897 7.1 CH HD Audio codec with Nahimic enhancements. The board also includes modern features like USB 3.2 Gen2 Type‑C, BIOS Flashback, Pre‑Installed I/O Shield, and ASRock utilities to simplify setup and driver installation.
Shipping: Available for immediate shipment
