| Hardware Specs |
| CPU |
1.0 GHz Dual-core, ARM Cortex-A53 |
| Flash/ROM |
128 MB (1 Gbit) NAND |
| DDR/RAM |
256 MB (2 Gbit) DDR3 |
| Cellular Standards |
5G Rel. 16, DL 4G Cat. 19 / UL 4G Cat 18 |
| Cellular Antennas |
4× Detachable, SMA Female connector |
| SIM Options |

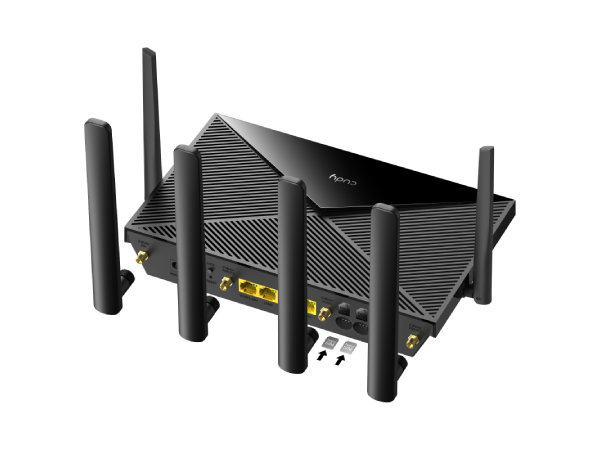

2× Nano SIM Slots |
| Available Versions |
EU, US |
| EU Cellular Region |
Europe, Middle East, Africa, Asia-Pacific (except JP, CN), Brazil |
| Max DL Speed |
3.4 Gbps (NSA), 2.4 Gbps (SA) |
| Max UL Speed |
550 Mbps (NSA), 900 Mbps (SA) |
| Advanced Cellular |
DL/UL 4CA, DL 4×4, UL 2×2 MIMO |
| Cellular Bands |
5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78, LTE-FDD: B1/3/5/7/8/20/28/32/71, LTE-TDD: B38/40/41/42/43, WCDMA: B1/5/8 |
| US Cellular Region |
Global |
| US Max DL/UL Speed |
3.4 Gbps (NSA), 2.4 Gbps (SA), UL: 550 Mbps (NSA), 900 Mbps (SA) |
| US Cellular Bands |
5G Sub 6 GHz: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79, LTE-FDD/TDD, WCDMA bands |
| 5 GHz Wi-Fi Speed |
2402 Mbps |
| 2.4 GHz Wi-Fi Speed |
574 Mbps |
| 5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
| Wi-Fi Antennas |
2× Fixed |
| Beamforming |
True |
| FEM/PA/LNA |
5 GHz: 2× External, 2.4 GHz: 2× External |
| Range Performance |
Max: 170 m (558 ft), tested in open space; actual coverage may vary |
| Wall Performance |
Two wooden walls < 10 cm, One concrete wall < 20 cm |
| Physical Buttons |
WPS Button, Reset Button |
| Gigabit RJ45 Ports |
4 (1 WAN/LAN configurable, 3 LAN) |
| LED Indicators |
Power, Internet, Wi-Fi, Cellular |
| Power Input |
DC Jack, 12V 2.5A |
| Power Adapter |
Input: 100~240V AC, Output: 12V 2.5A DC |
| Operating Temperature |
0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉) |
| Storage Temperature |
-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) |
| Operating Humidity |
10% ~ 90% non-condensing |
| Storage Humidity |
5% ~ 90% non-condensing |
| EMC |
ESD: Contact: 4kV; Air: 8kV |
| Certifications |
FCC, CE |
| Dimension |
253×152.5×48.2 mm (9.96×6×1.9 in) |
| Product Weight |
670 g (23.63 oz.) |
| Installation |
Desktop, Wall-mount |
| Software Specs |
| Wi-Fi Standards |
Wi-Fi 6 |
| Max Wi-Fi Modulation |
1024-QAM |
| Wi-Fi Efficiency |
OFDMA, MU-MIMO, BSS Color |
| Max Capacity |
256 devices |
| Recommended Client Limit |
100 devices |
| Max Wi-Fi Channel Width |
160 MHz |
| Wi-Fi Security |
WPA/WPA2/WPA3 |
| Guest Network |
2.4 GHz, 5 GHz |
| WPS |
True |
| Operation Modes |
Cellular Router, Wi-Fi Router |
| Mesh |
Cudy Mesh Main (Wireless & Wired Backhaul) |
| Cellular Modes |
5G NSA Only, 5G SA Only, 4G Only, 3G Only, Auto |
| WAN Modes |
DHCP, Static IP, PPPOE, L2TP, PPTP |
| Internet Failover |
WAN → Cellular |
| VPN Server |
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
| VPN Client |
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP |
| DNS Options |
DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS (Cloudflare, Google, Quad9, Custom) |
| Wake on LAN |
True |
| Online Detection |
True |
| Parental Controls |
Profiles, Offline/Online Time, Pause Internet, Web Filter |
| Device Management |
All Devices, Wi-Fi Schedule, MAC/IP Binding, Per-device Control |
| Content Management |
Domain Filter, IP Filter |
| System Control |
LED Control, Local: Web/App, Remote: HTTPS Config Page, TR069/TR098/TR111/TR143/TR181 |
| Firmware Upgrade |
Local Update, App (OTA), Online Update |
| Diagnostic Tools |
Diagnosis, Ping, Traceroute, NSLookup, System Log |
| Languages |
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified & Traditional Chinese |
| Reliability |
Timed Reboot, Backup and Restore |
| Dashboard |
Internet, Mesh, Devices, Cellular, SMS, WAN, LAN, Wi-Fi, VPN, DHCP, System Version |
| Charts |
Mesh Topology, Cellular Speed, Internet Speed, Wi-Fi Speed |
