The UGREEN CM455 HDMI Over Ethernet Extender is a high-performance HDMI transmission solution designed to extend high-definition video and audio signals over long distances using a single CAT5e or CAT6 Ethernet cable. With support for transmission distances of up to 70 meters (230 feet) and resolutions up to 1920×1080@60Hz, it provides a reliable and cost-effective alternative to long HDMI cables.

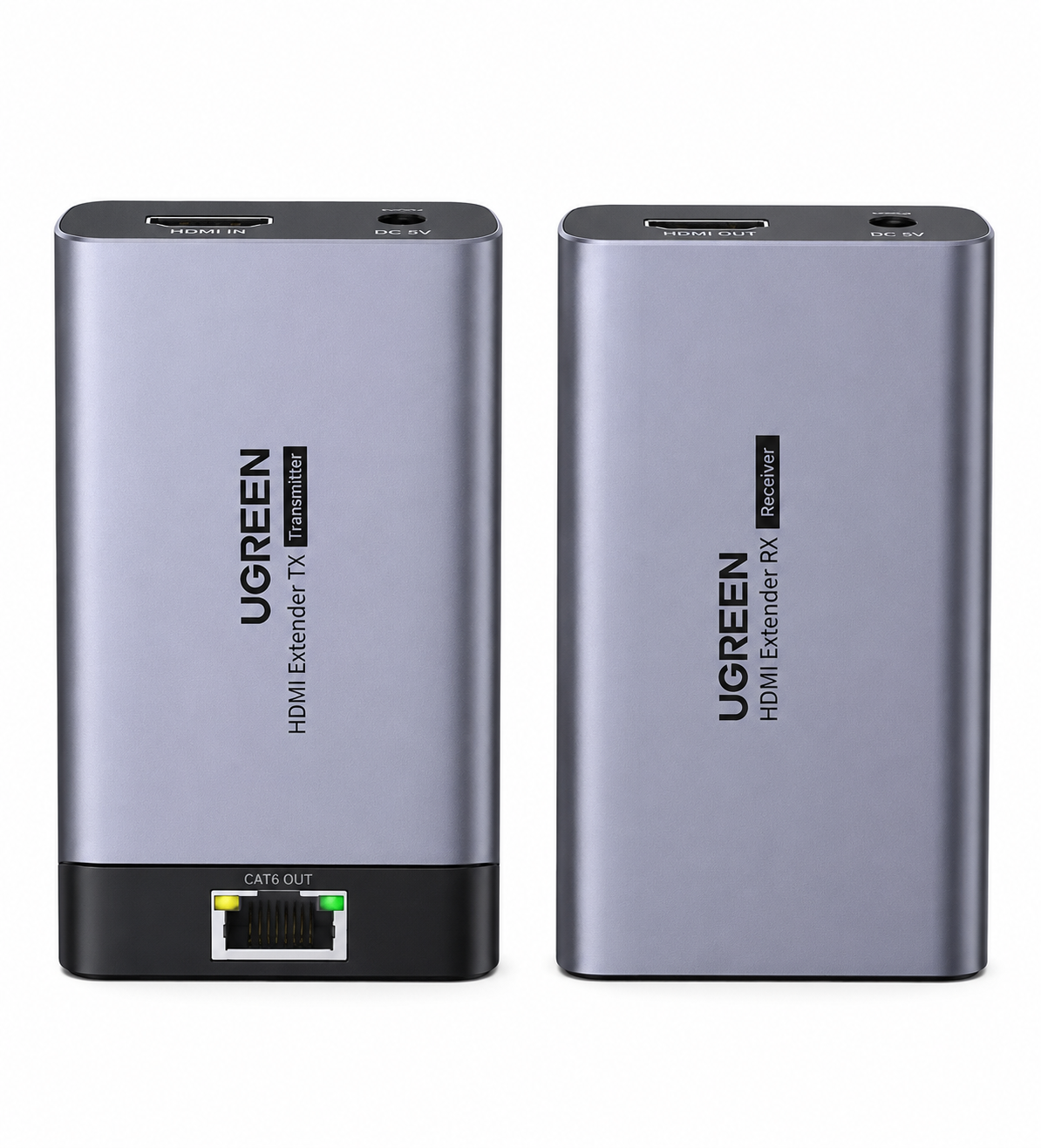

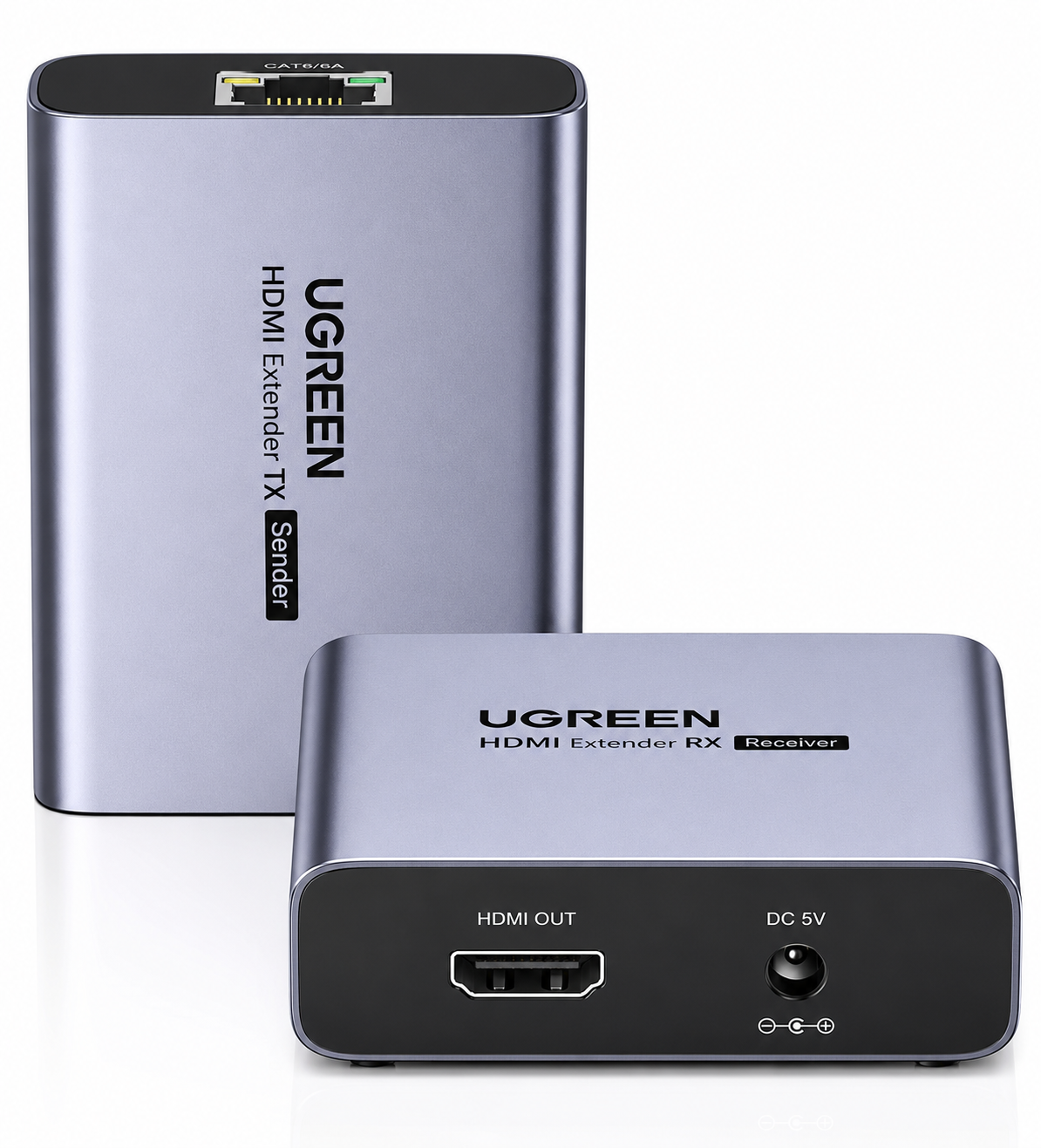

The extender consists of a Transmitter (TX) and Receiver (RX) unit, allowing seamless signal transmission while maintaining image quality and audio fidelity. Its plug-and-play design eliminates the need for software installation or complicated configuration, making deployment quick and easy in professional and residential environments.
Built with a durable aluminum alloy housing, the CM455 offers excellent heat dissipation and long-term reliability. It is ideal for digital signage, conference rooms, surveillance systems, educational facilities, retail displays, projectors, home theaters, and other applications requiring long-distance HDMI signal distribution.
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM455 |
| Part Number |
20519EU |
| Product Type |
HDMI Over Ethernet Extender |
| Transmission Distance |
Up to 70m |
| Resolution Support |
1920×1080P @ 60Hz |
| HDMI Version |
HDMI 1.3/1.4 Compatible |
| HDCP Support |
Yes |
| Network Cable |
CAT5e / CAT6 |
| Audio Support |
PCM, DTS, Dolby Digital |
| Housing Material |
Aluminum Alloy |
| Power Supply |
DC 5V |
| Installation |
Plug & Play |
| Color |
Space Gray |
Shipping: Available for immediate shipment
