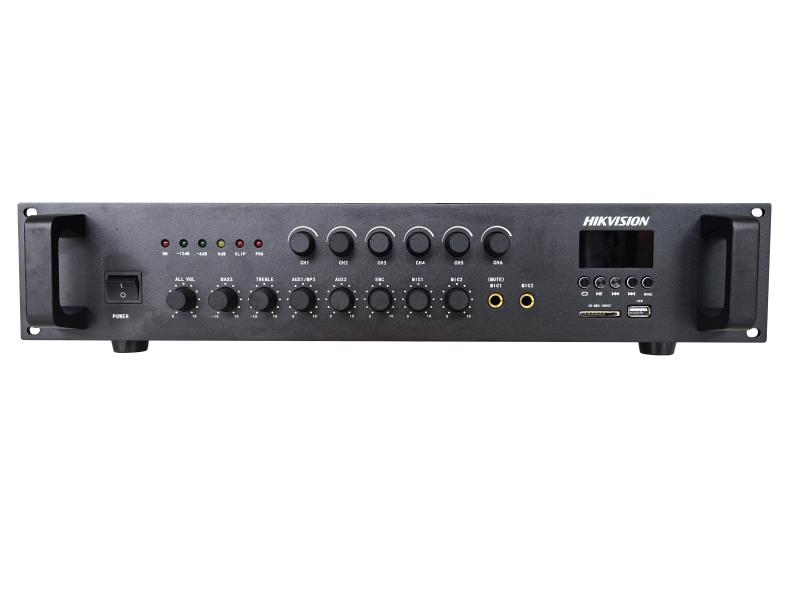

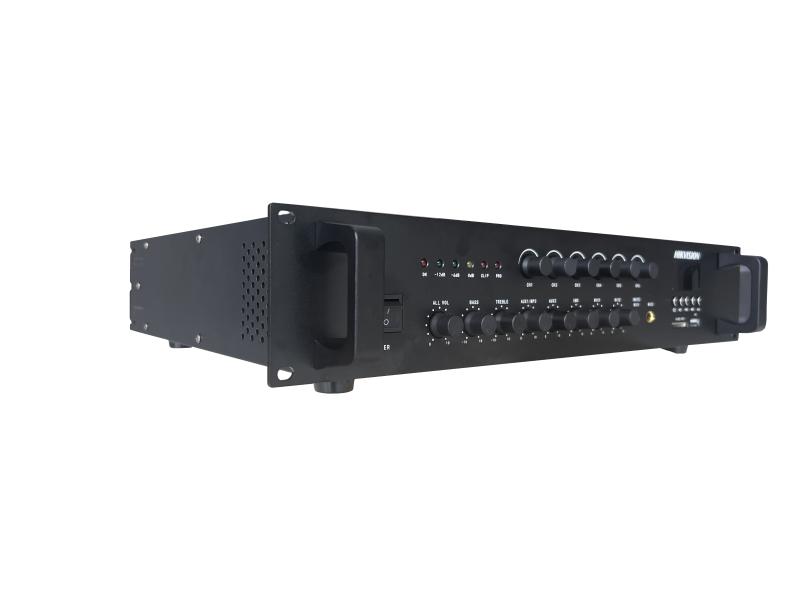

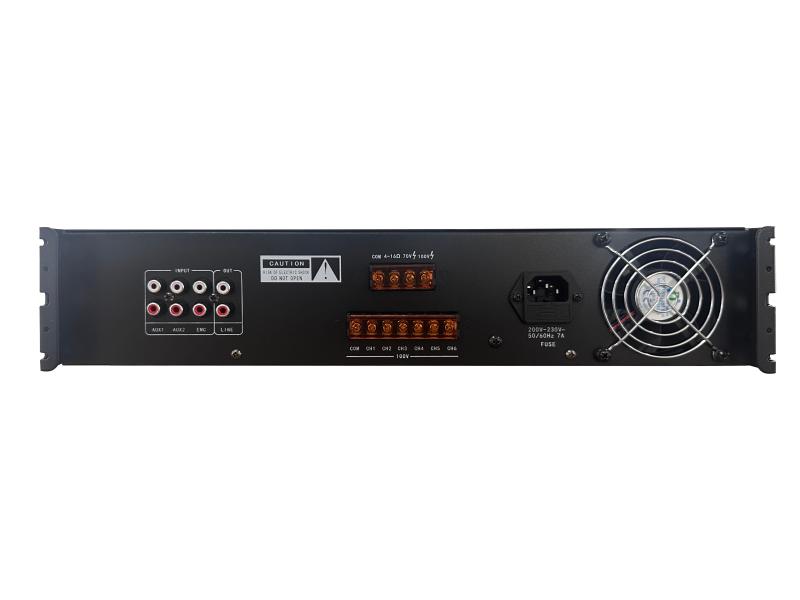

Hikvision DS-QAE0A240G1-VB6 | 240W Analog Amplifier

Hikvision DS-QAE0A240G1-VB6 | 240W Analog Amplifier
Not rated
In Stock Model: DS-QAE0A240G1-VB6
165 JOD

The DS-QAE0A240G1-VB6 is a high-power 240W Analog Amplifier designed for large-scale Small and Medium-sized Businesses (SMB). It features six-zone independent volume control, versatile inputs including Bluetooth 5.0, USB, and RCA, and supports both constant voltage (70V/100V) and constant resistance (4-16 Ω) outputs, making it a comprehensive central hub for expansive public address and background music systems.

QTY

Total : 165 JOD

The Hikvision DS-QAE0A240G1-VB6 is a professional-grade analog amplifier engineered for extensive commercial environments such as multi-floor retail centers, large factories, and sprawling hospitality venues. Delivering a robust 240W output, its standout feature is the six-zone partition management, allowing users to precisely adjust audio levels in six different areas independently. Connectivity is highly flexible, supporting Bluetooth 5.0 for wireless streaming, USB playback, and multiple RCA inputs for external sources. Encased in a durable metal housing with a high-strength aluminum alloy front panel, it is built for long-term industrial reliability. With built-in protections against short circuits, overloads, and overheating, it ensures stable and high-fidelity audio performance for complex paging and background music requirements.

Specifications

Power & Performance
Rated Power240 W
Frequency Response20 Hz to 20 kHz
Signal-to-Noise Ratio (SNR)≥ 75 dB
THD (Total Harmonic Distortion)≤ 0.1% @ 1 kHz
Audio Inputs & Connectivity
BluetoothBluetooth 5.0 (up to 15m range)
USB InterfaceUSB 2.0 (supports MP3/WAV/WMA/FLAC)
Audio Input2 × RCA, 1 × MIC (6.35 mm)
Audio Output1 × RCA (Line Out)
Output Parameters
Output ModeConstant Voltage (70V/100V) or Constant Resistance (4-16 Ω)
Zone Management6-zone independent volume adjustment
Volume ControlMain volume, independent zone knobs, Treble/Bass adjustment
General Specifications
MaterialAluminum alloy (front panel), Metal housing
Dimensions (W × H × D)480 mm × 88 mm × 350 mm
WeightApprox. 10.5 kg
Operating Temperature-10 °C to 50 °C
Power Supply100 to 240 VAC, 50/60 Hz
