Cudy M1300 AC1200 Gigabit Mesh Wi-Fi System

Not rated

In Stock Model: M1300 2.0

29 JOD

Add to My Favourite Add to compare

Data sheet

Wi-Fi Standard: 4-Stream Dual-Band Wi-Fi 5
Wi-Fi Speed: 867 Mbps + 300 Mbps
Ethernet Ports: 2× Gigabit Ethernet Ports
Roaming: Fast Roaming
Technology: MU-MIMO, Beamforming
VPN: VPN Server and Client
Backhaul: Multi-Band Simultaneous Backhaul
Control: Cudy App, Cloud Control

QTY

Add to Cart

Quote Request

Total : 29 JOD

Description Specifications Customer Reviews

The Cudy M1300 is a high-performance dual-band Wi-Fi 5 router designed for seamless home and office connectivity. With speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, 4 internal antennas, MU-MIMO, and Beamforming technology, it ensures stable and extended coverage. It supports Mesh networking, VPN server/client, Gigabit Ethernet ports, and offers easy management via the Cudy App and cloud control. Compact, reliable, and easy to install, the M1300 delivers fast, secure, and stable internet throughout your space.

Specifications

Hardware Specs
CPU	880 MHz Dual-Core, MIPS1004Kc
Memory / Storage	ROM: 16 MB NOR RAM: 128 MB DDR3
5 GHz Wi-Fi Speed	867 Mbps, 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Speed	300 Mbps, 2T2R (2×2 MIMO)
Wi-Fi Antennas	4× Internal (2× 5 GHz, 2× 2.4 GHz)
Beamforming	True
Range Performance	Max: 170 m (558 ft) Open space, may vary with walls
Wall Performance	2 wooden walls (<10 cm) 1 concrete wall (<20 cm)

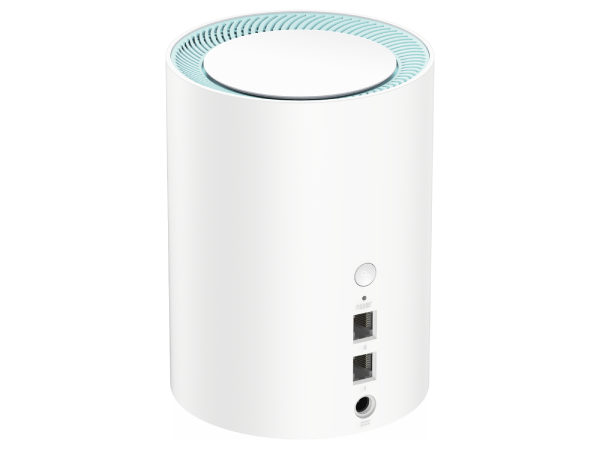

Interfaces	2× Gigabit RJ45 Ports Port 1 = WAN by default, LAN in Mesh mode LEDs: System, Speed/Link/ACT Buttons: WPS, Reset
Power	Input: 100–240V AC, 50/60 Hz Output: 12V 1A DC Power via DC Jack
Reliability & Environment	Operating Temp: 0–40℃ Storage Temp: -40–70℃ Humidity: 10–90% (non-condensing) Certifications: FCC, CE
Mechanical	Dimension: Φ110×154.5 mm (4.33×6.08 in) Weight: 298 g Installation: Desktop
Package Content	M1300 v2, Power Adapter, Ethernet Cable, Installation Guide
Retail Info	1-Pack: 672 g (EU), 628 g (US) 2-Pack: 1188 g (EU), 1158 g (US) 3-Pack: 1674 g (EU), 1650 g (US) Dimensions (1-Pack): 145×130×265 mm Units per Carton: 1-Pack:16, 2-Pack:8, 3-Pack:4
Software Specs
Wi-Fi Standards	Wi-Fi 5 (802.11ac), MU-MIMO
Operation Modes	Router, Access Point, Mesh (Cudy Mesh)
WAN Modes	DHCP, Static IP, PPPoE, PPTP, L2TP
Network QoS	DHCP, IPv4/IPv6, Port Forwarding, Firewall
VPN	Server & Client Supported
System Control	Local: Web/App Remote: Cloud Control Firmware Upgrade: Local/Online
