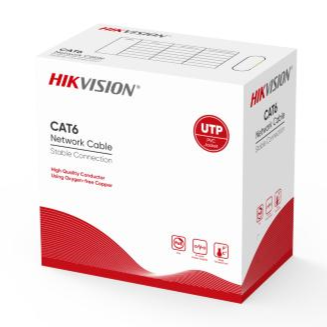

Hikvision DS-1LN6-UU | Cat6 UTP 23 AWG 305m Network Cable

Hikvision DS-1LN6-UU | Cat6 UTP 23 AWG 305m Network Cable
Not rated
In Stock Model: DS-1LN6-UU
120 JOD

  • Full diameter 305 m CAT6 network cable
  • Core diameter: 0.565mm
  • Excellent transmission performance using solid copper
  • Quality verified by Fluke test
  • Guaranteed long PoE transmission distance
  • Great PVC flame resistance.
QTY

Total : 120 JOD

The DS-1LN6-UU is a high quality Category 6 network cable featuring a solid copper conductor with a core diameter of 0.565 mm. It comes in a full 305-meter length, ensuring excellent transmission performance and signal integrity. This cable is rigorously tested with Fluke equipment to guarantee reliable operation, especially for long-distance Power over Ethernet (PoE) applications. Designed with a durable PVC sheath, it offers strong flame resistance and complies with industry standards such as ANSI/TIA-568-C.2 and ISO/IEC11801. It operates efficiently within a temperature range of -20°C to 75°C and is distinguished by its bright orange color for easy identification.

Specifications

Conductor & Insulation
MaterialSolid Bare Copper (99.97%)
Diameter0.565 mm ± 0.005 mm (23 AWG)
Insulation MaterialHDPE (High-Density Polyethylene)
Number of Pairs4 Pairs
Sheath & Physical Features
Sheath MaterialPVC (Flame Retardant)
Sheath Thickness0.50 mm ± 0.05 mm
External Diameter6.2 mm ± 0.4 mm
ColorGrey
SeparatorCross Filler (Internal Spline)
Electrical & Standards
Reference StandardISO/IEC 11801, ANSI/TIA-568-C.2
Characteristic Impedance100 ± 15 Ω @ 1-250 MHz
Max. Resistance≤ 9.38 Ω/100 m
Packaging305 m (1000 ft) per carton
Operating Temperature-20 °C to 70 °C
