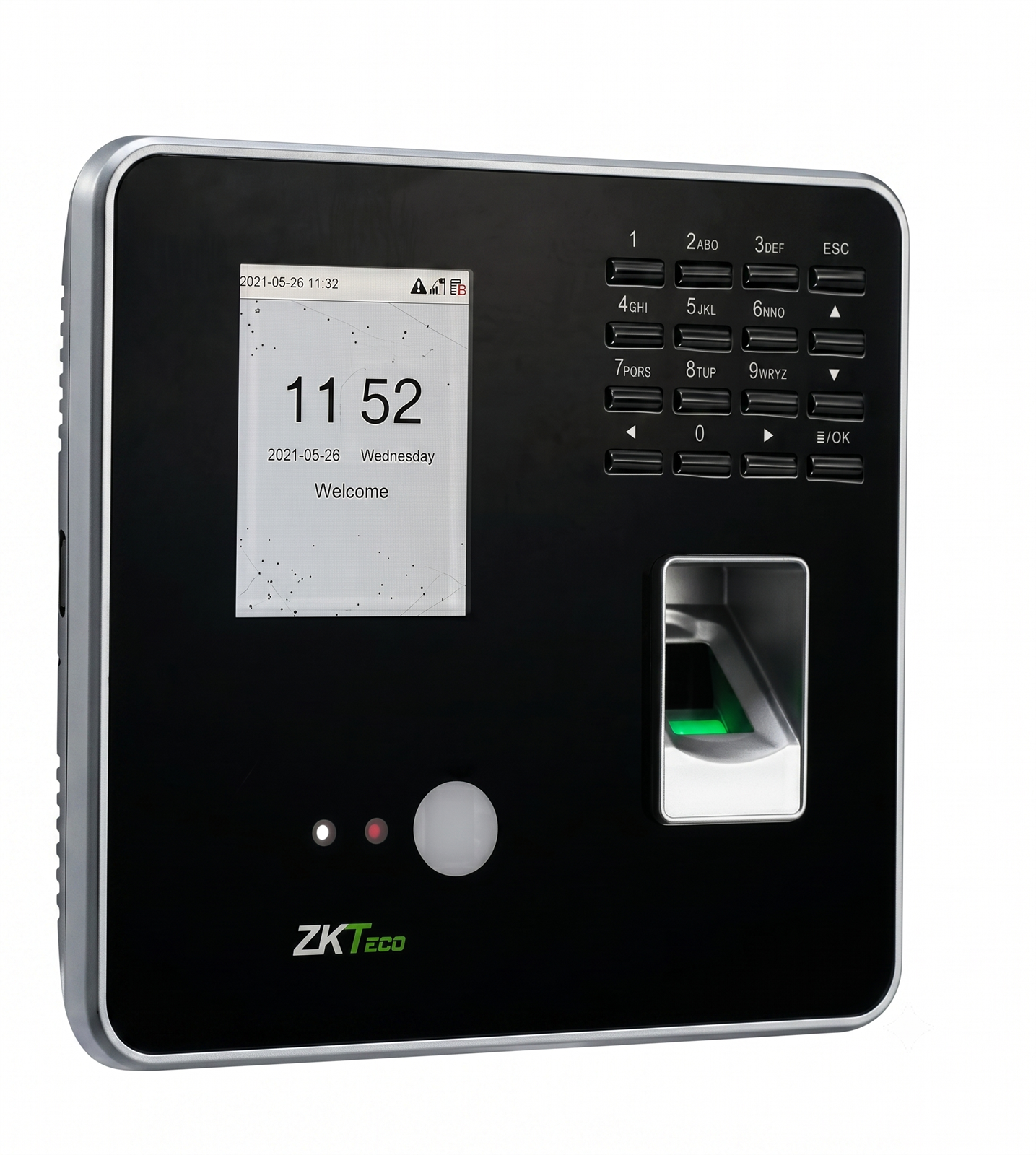

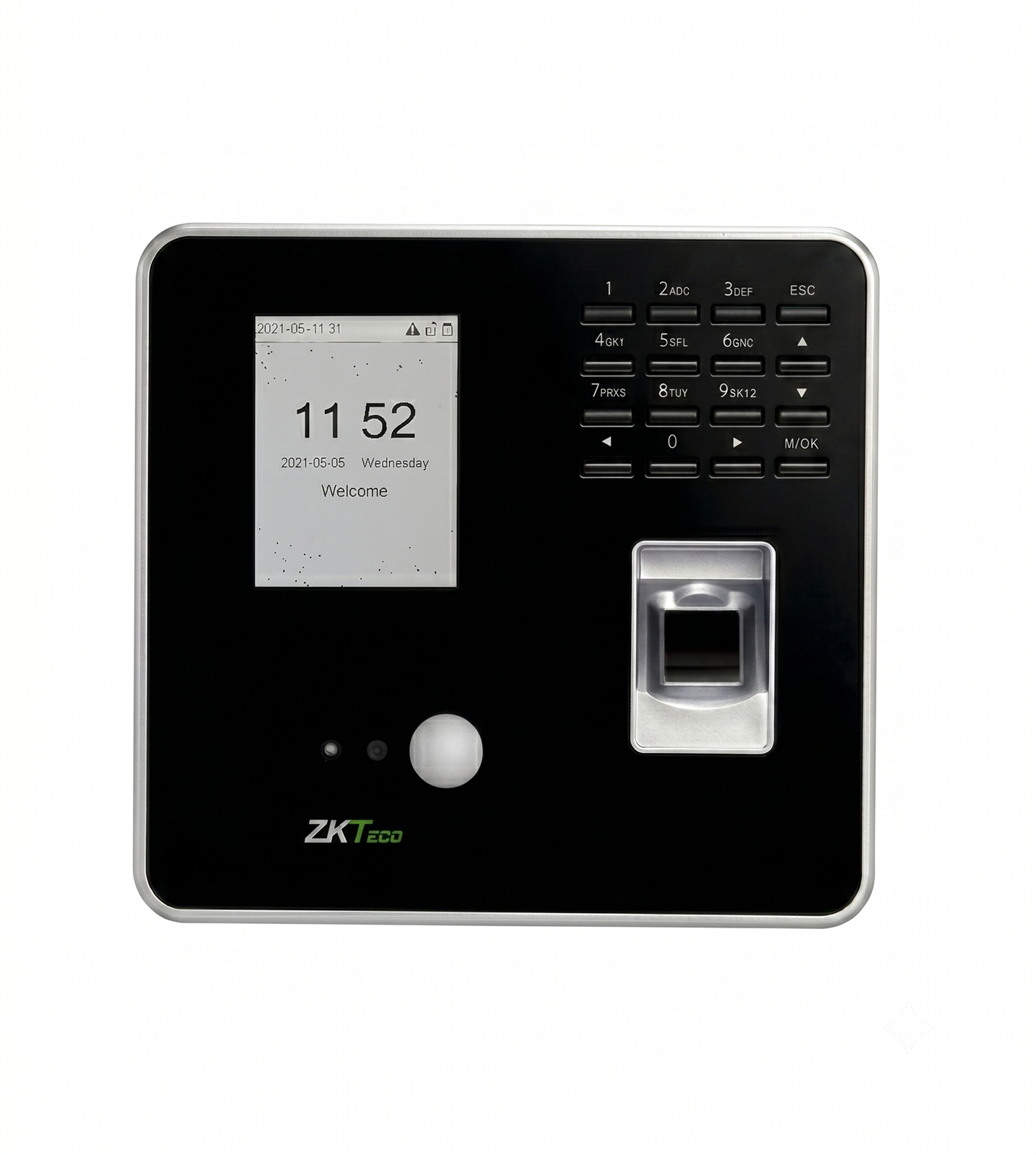

ZKTeco MB20-VL Advanced Identification Terminal: Superior Security and Seamless Performance

The MB20-VL is a state-of-the-art touchless multi-biometric identification terminal designed to elevate security and streamline time management in any workspace. By integrating ZKTeco’s most innovative technologies, it delivers a highly secure, efficient, and user-friendly experience:

• Advanced Visible Light Facial Recognition: Utilizing the latest algorithm and Visible Light technology, the device automatically activates when a face is detected within a 30cm to 50cm range. This ensures significantly better recognition quality, speed, and accuracy compared to previous near-infrared terminals.

• Enhanced Anti-Spoofing Protection: Powered by applied Deep Learning algorithms, the terminal features exceptional pose angle tolerance. It provides highly enhanced anti-spoofing capabilities, protecting against various dynamic environment attacks and print/video spoofing attempts.

• Comprehensive Multi-Verification: Beyond facial recognition, the MB20-VL is equipped with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and offers robust support for mainstream card modules, giving users ultimate flexibility in verification methods.

• Versatile and Adaptable: Bringing together sophisticated biometric security and practical functionality, the MB20-VL is the perfect fit for various business environments, reliably satisfying different customer needs and operational demands.

• Display	2.8-inch TFT Screen
  Face Capacity	100 (Optional:800)
  Fingerprint Capacity	500 (Optional:800)
  Card Capacity	500 (Optional),Max.800
  Transactions	50,000 (Optional:150,000)
  Communication	TCP/IP, USB Host, WiFi (Optional)
  Standard Functions	ADMS, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digt User ID, Multiple Verification Methods, Bell Scheduling, SSR
  Hardware	1GHz Dual-Core CPU, 256MB RAM/256MB Flash, 1MP Binocular Camera
  Operation System	Linux
  Access Control Interface	3rd Party Electric Lock, Door Sensor, Exit Button
  Optional Functions	125kHz ID Card (EM) / 13.56MHz IC Card, WiFi
  Biometrics Algorithm	ZKLiveFace V3.5 / ZKFinger V10.0
  Facial Recognition Speed	≤1s
  Power Supply	5V 2A
  Working Humidity	20% to 80%
  Working Temperature	0°C to 45°C
  Dimensions(W*H*D)	161.93*152.93*31.50 (mm)
  Supported Software	ZKBio Access IVS (T&A)
